Starlink 12V/24V Waterproof Illuminated Rocker Switch – SPST 5-Pin (Blue Logo)

Overview

Power your Starlink the clean, pro way. This waterproof, illuminated SPST rocker switch drops into any standard Carling-style panel cutout and gives you simple ON/OFF control for Starlink Mini, Starlink Standard, and Gen 3 setups in trucks, UTVs, RVs, boats, and overland rigs. A crisp blue logo lights when the circuit is ON so you can confirm power at a glance—day or night.

Why Baja Racing Gear’s switch?

• Pre-wired convenience – Includes crimped spade connectors and color-coded pigtails for fast, reliable installs.
• IP66 weatherproof – Built for dust, splash, and off-road use.

• High current headroom – DC 12V 20A / 24V 10A rating easily covers Starlink power adapters and vehicle circuits.

• Clean indicator – Blue backlit logo illuminates when switched ON.

• Standard cutout – Fits common Carling-style 21.2 × 37.2 mm slots and most switch panels.

What’s included

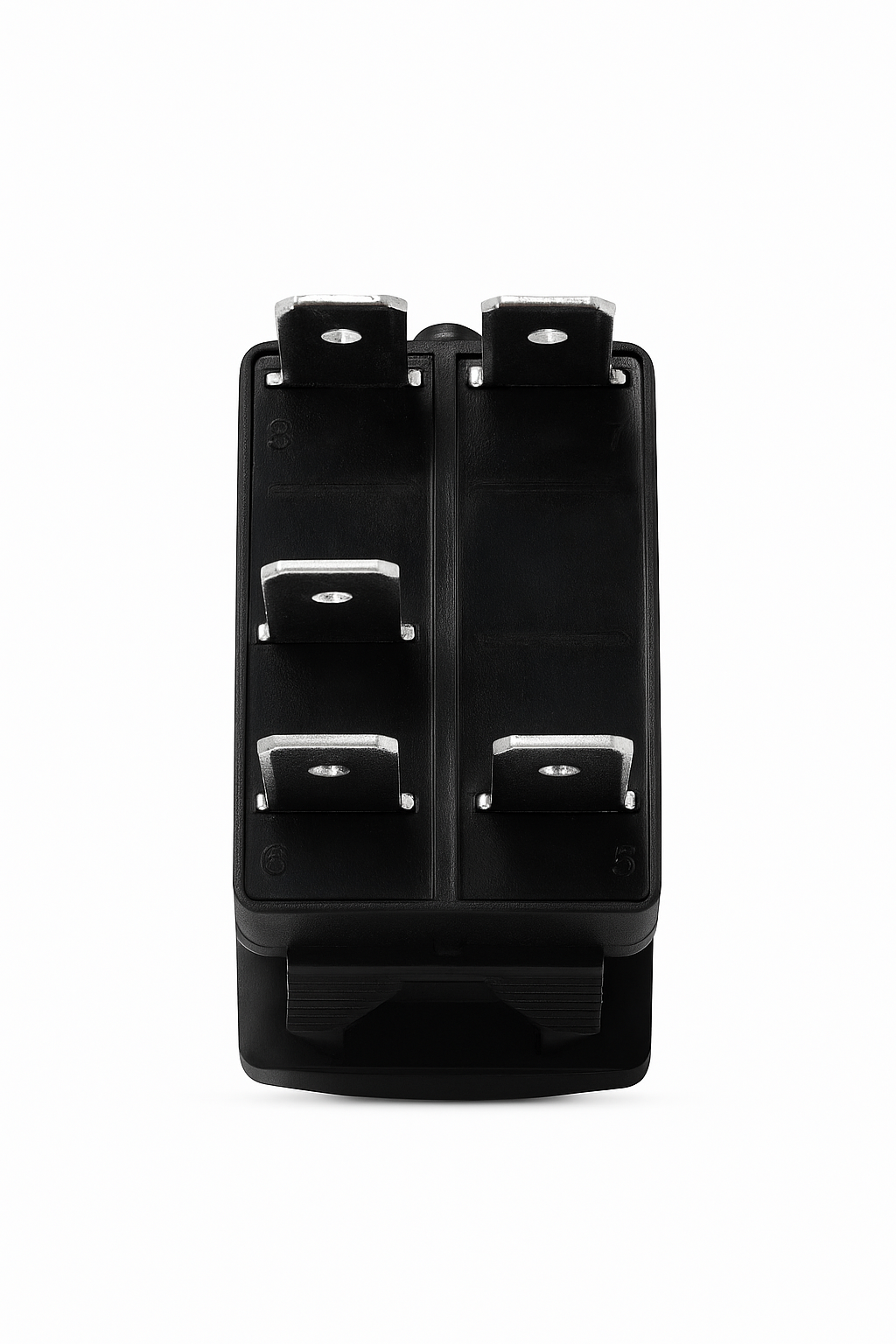

• 5-Pin SPST ON/OFF rocker switch with blue Starlink logo

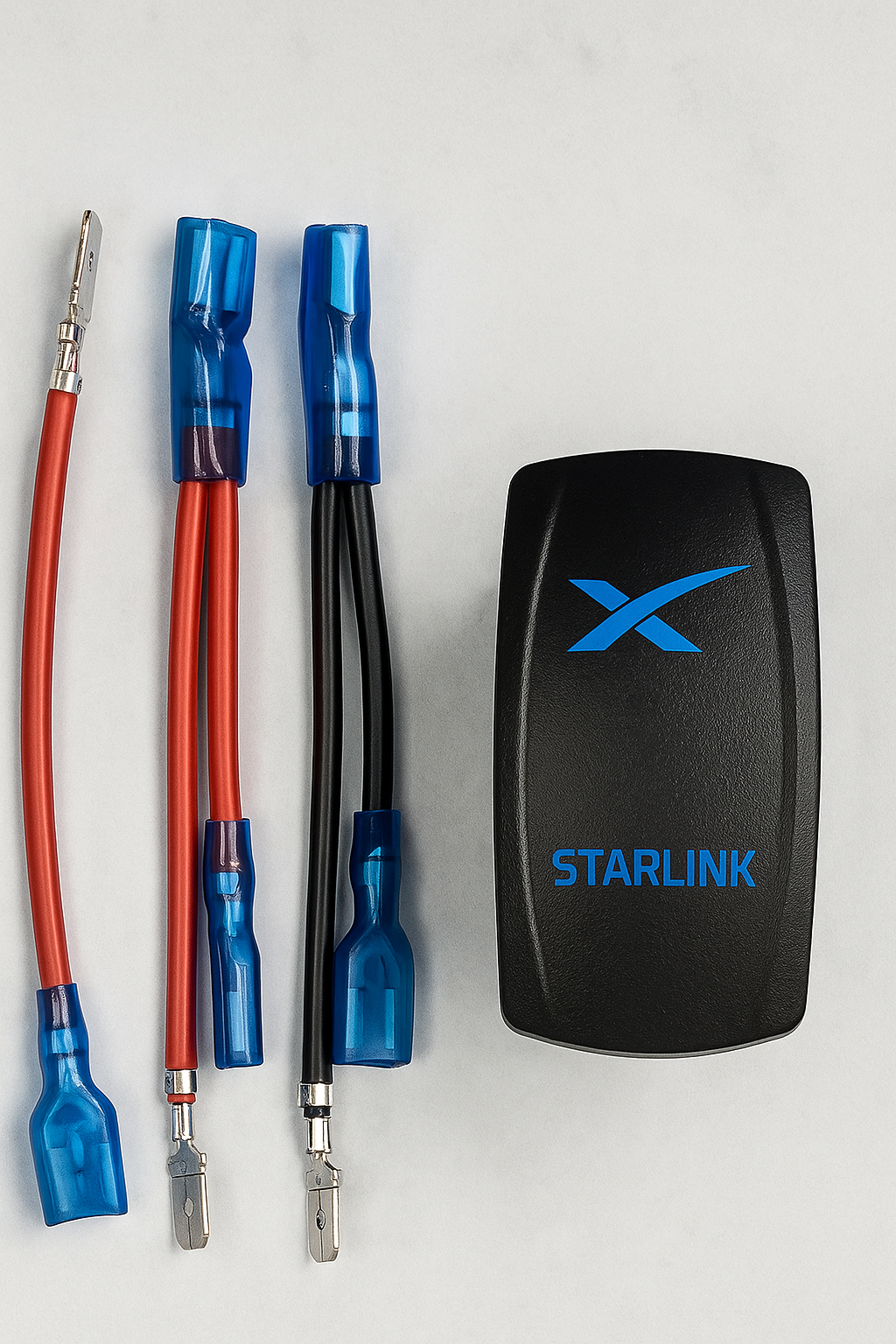

• Pre-wired pigtails (red ×3, black ×2) with insulated female spades

Install at a glance

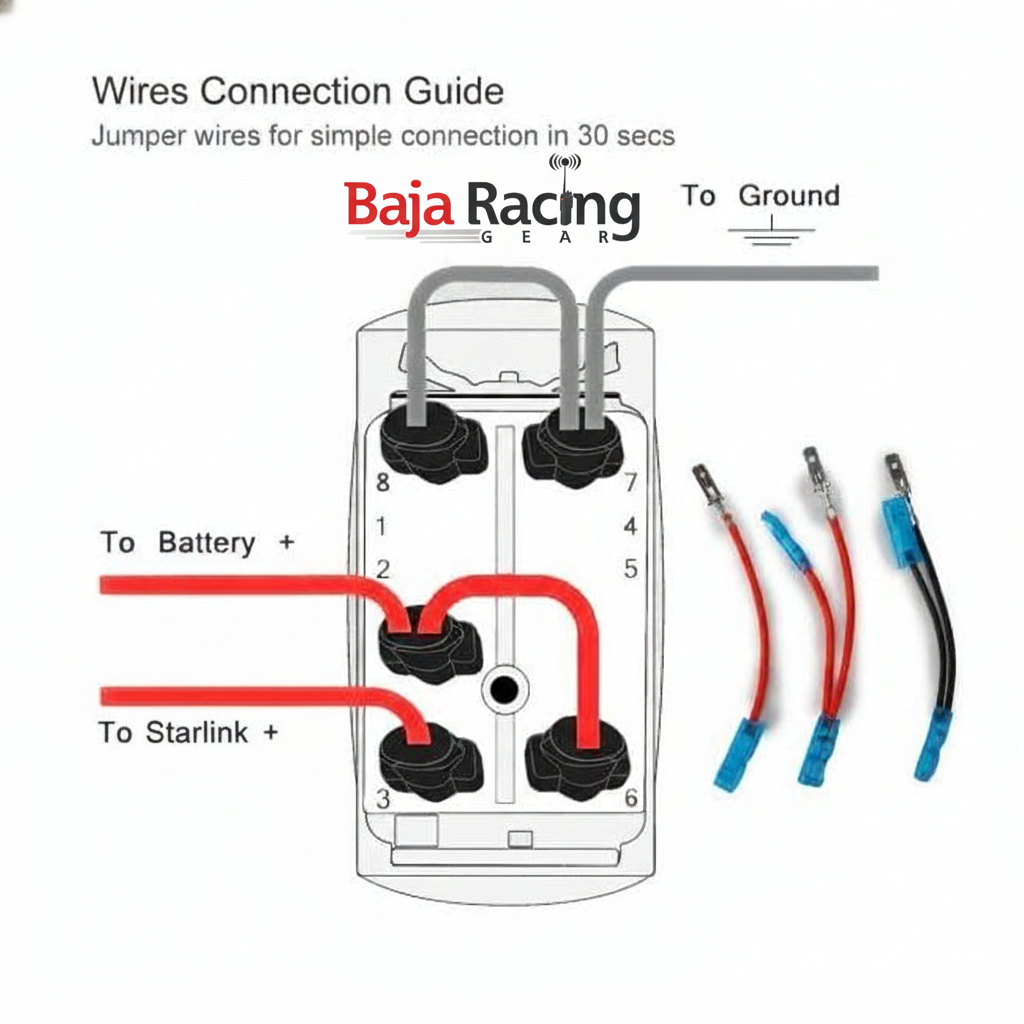

Use an inline fuse at the battery or source, tie grounds to chassis or negative bus, and route the switched +12V to your Starlink power input. See wiring diagram in the photos.

Wiring (color-matched)

• Red (looped pair) – Fused +12V input and LED illumination +
• Red (single) – Switched +12V output to Starlink power feed

• Black (pair) – Grounds (–) for switch/LED and device

Compatibility

Designed for DC systems in vehicles and boats. Works with Starlink Mini, Starlink Standard, and Gen 3 router power solutions using 12V or 24V electrical systems.

Tech Specs



Type	SPST (ON/OFF), 5-pin illuminated

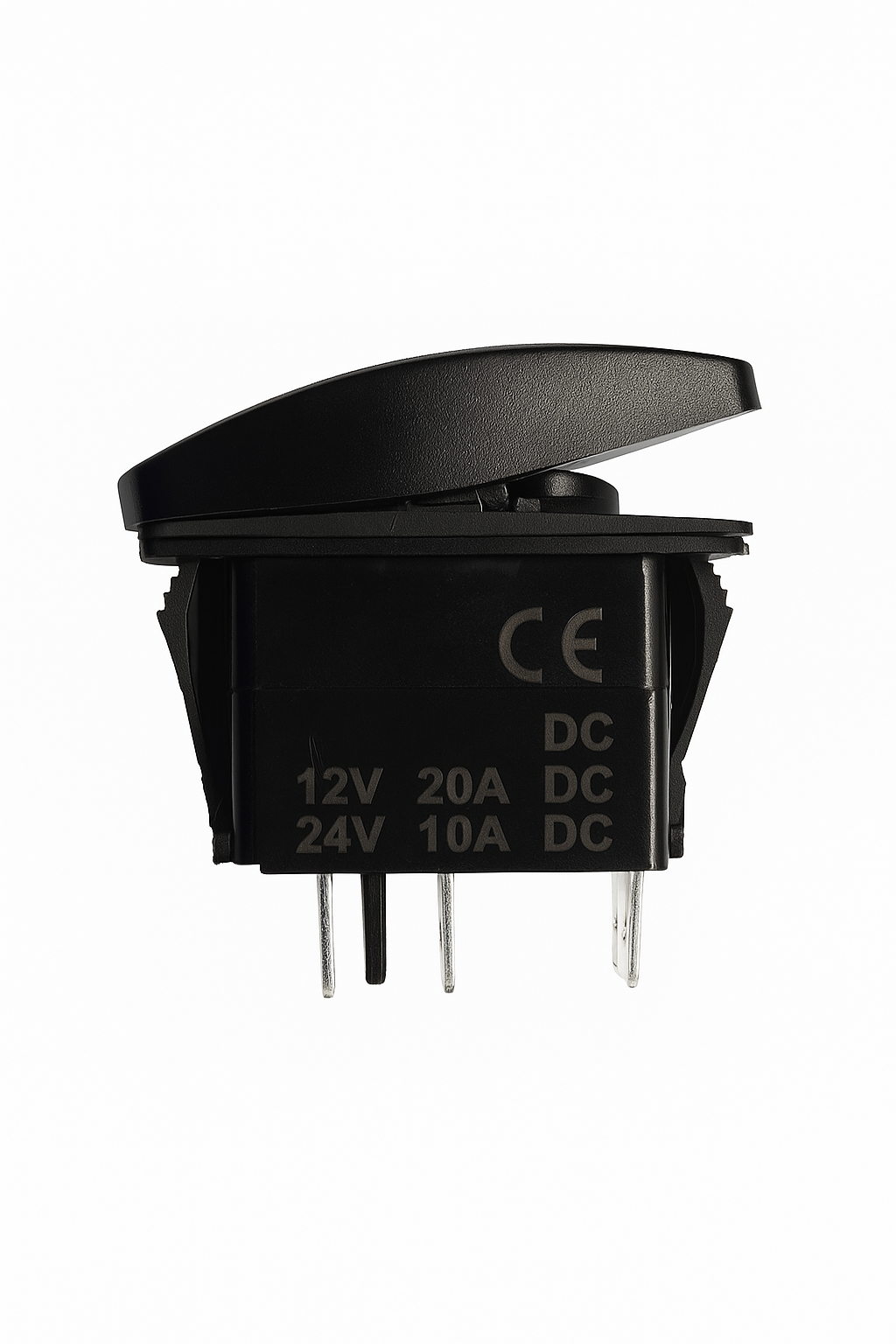

Voltage / Current	DC 12V 20A, DC 24V 10A
Waterproof Rating	IP66
Cutout Size	21.2 × 37.2 mm (0.83″ × 1.46″)
Panel Size	Approx. 47 mm × 68 mm faceplate
LED	Blue logo (illuminates when ON)
Terminals	Pre-crimped female spade connectors

In the field

Whether you’re wiring a discrete dash switch or adding it to a multi-switch panel, this compact rocker keeps your Starlink power safe, fused, and quickly accessible. Perfect for overlanding, trail comms, remote work, and basecamp internet.
