Description

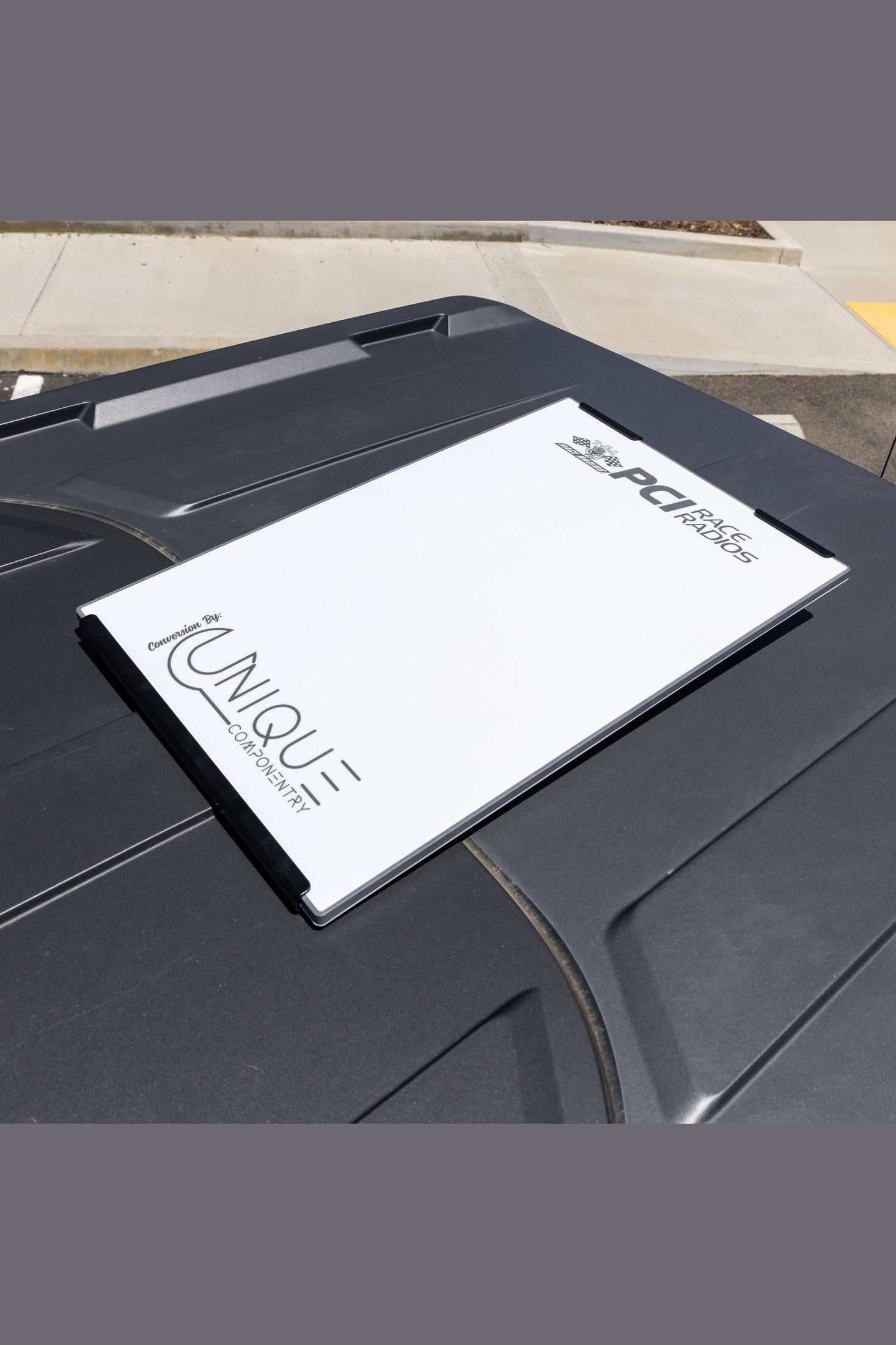

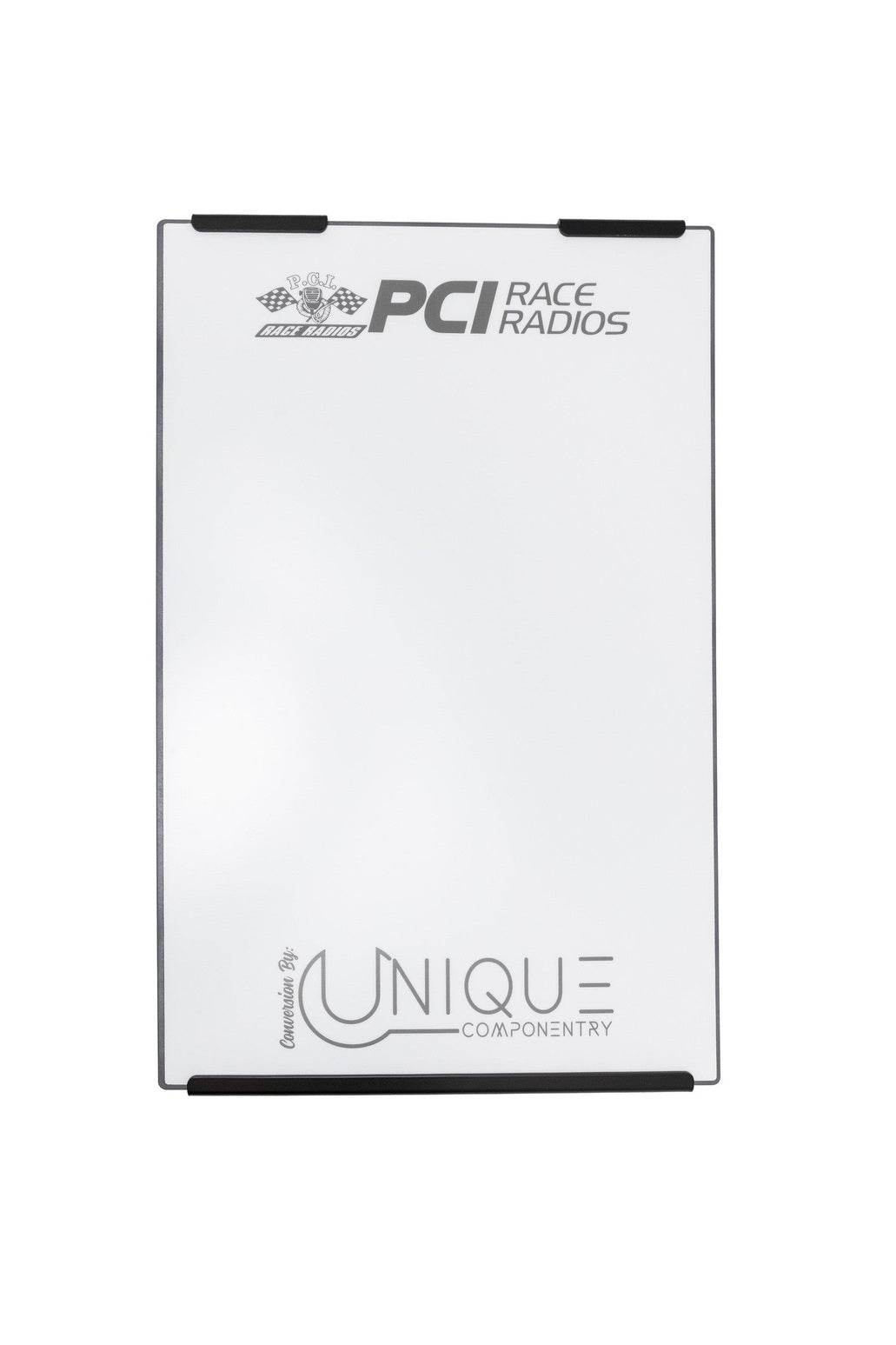

All new Starlink Gen 3 easy solution for satellite internet on your Race Truck, Chase Truck or RV. This Unique Componentry Starlink IP65 conversion offers a flat panel, all in one 12V conversion. Compatible with any Starlink Gen 3 mount for alternative mounting options.
Also available in Starlink Gen 2 which features a smaller overall footprint, lower height and lower power draw.
What's Included in the Chase Package:
- New Starlink V3 Antenna* with built in Starlink Wi-Fi 6 router for better router distance
- 6 ft Power Cord (includes an optional cigar adapter, but we don't recommend using this for best power and speeds)
- 20 ft 10 gauge direct to battery wiring harness (recommended)
- 110v power adapter

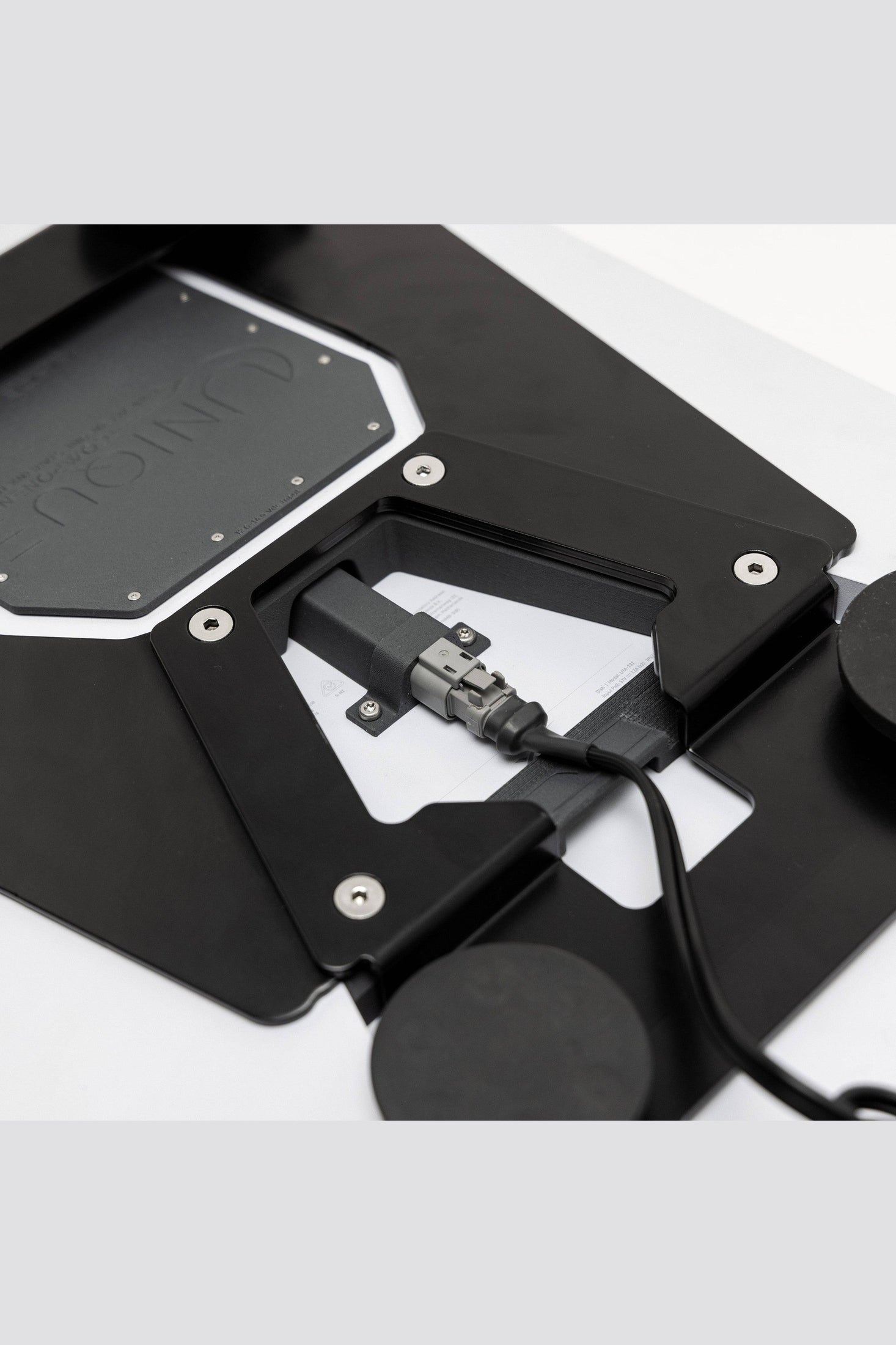

- Aluminium Wedge Mount with Flexible Magnet feet, includes a spacer kit for tall roof ribbing
- Steel adhesive landing pads for aluminum roofs
- High quality, zippered carrying case
What's Included in the Race Package:
- New Starlink V3 Antenna* with built in Starlink Wi-Fi 6 router for better router distance

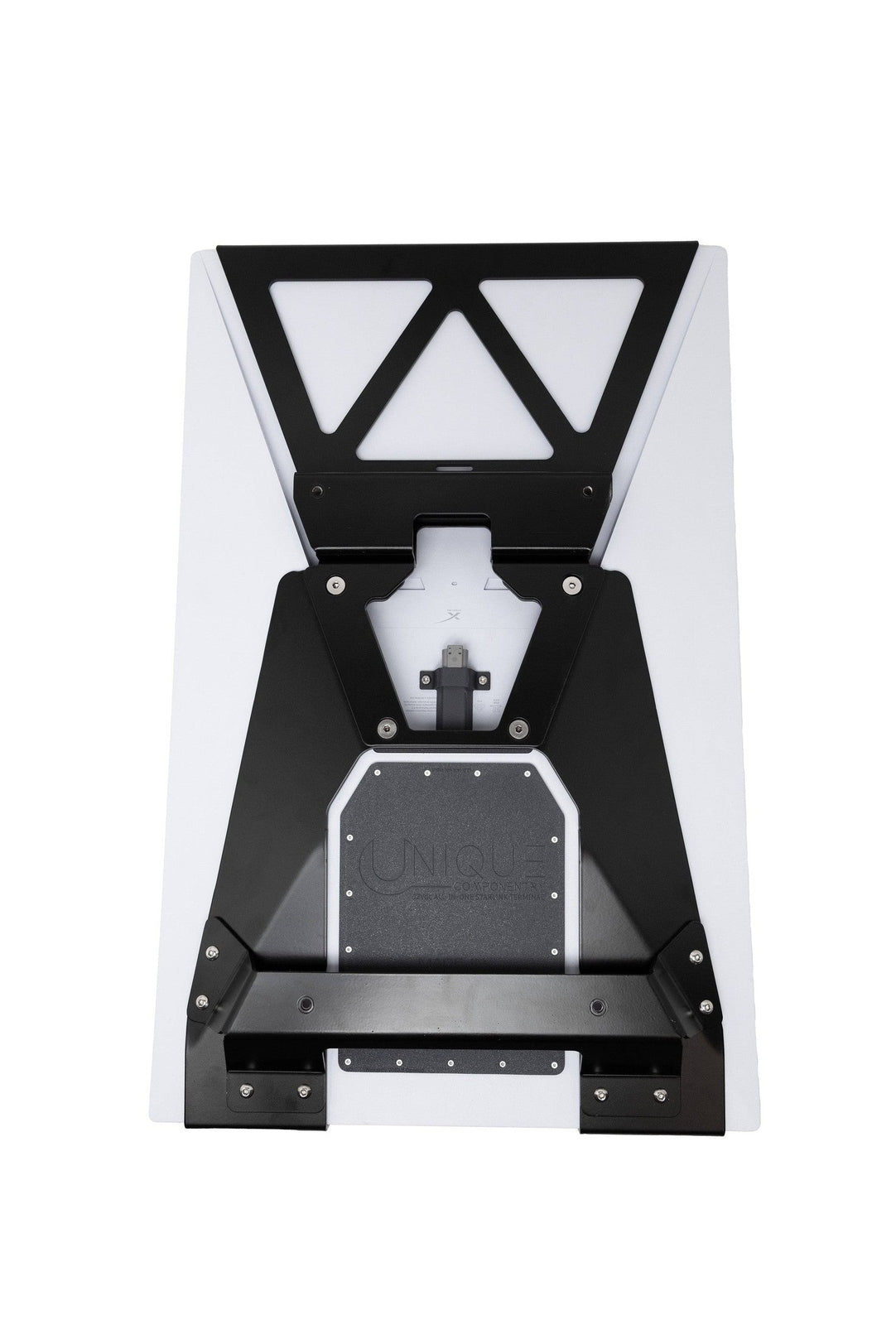

- Aluminium Flat mount bracket.
- 10 ft Duetsch direct to battery wiring harness
We highly recommend the pass through enabled battery pack (sold separately) that can be charged while use so you always have a full battery when the car is turned off. This is a must in vehicles without an alternator like Can Am's. The battery pack helps stabilize power, keeping the Starlink antenna powered on when you need it.
*Starlink Service Sold Separately. You will receive instructions with your device for activation. These are USA devices. There are roam services plans available to allow use in Mexico and Canada, but they need to be activated with a US address or may be subject to a region activation fee. Read more about outside region activation fees here.
Starlink modification voids the factory warranty. Device comes with a 1 year warranty from Unique.
Starlink Satellite Antennas are FINAL SALE
Specifications
- Overall dimensions 23.75" x 15" x 2 3/4"
- Weight - 10.65lb Including Bracket With Magnet Feet
- Power Draw - 8.5amp (102 Watts) on startup/searching. 3.5amp (42 Watts) Operating Once Connected
Antenna Specs:
| Antenna | Electronic Phased Array |
| Field of View | 110 ° |
| Orientation | Software Assisted Manual Orienting |
| Weight | see above |
| Environmental Rating | IP67 Type 4 |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Wind Speed | Operational: 96 kph+ (60 mph+) |
| Snow Melt Capability | Up to 40 mm / hour (1.5 in / hour) |
| Power Consumption | Average: 75 - 100 W |
Wifi Router Specs:
| Product Dimensions | built into antenna dish |
| Wi-Fi Technology | 802.11 a/b/g/n/ac/ax |
| Generation | Wi-Fi 6 |
| Radio | Tri Band 4 x 4 MU-MIMO |
| Ethernet Ports | Two (2) Latching Ethernet LAN ports with removable cover |
| Coverage | Up to 297 m² (3,200 ft²) |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Weight | 0.57 kg (1.25 lbs) |
| Security | WPA2 |
| Environmental Rating | built into antenna dish |
| Power Indicator | LED | face plate, lower left corner of router |
| Mesh Compatibility | Compatible with Starlink Gen 2 and Gen 3 Mesh nodes, up to 3 Starlink Mesh Nodes. *Not compatible with 3rd party mesh systems |
| Devices | Connect up to 235 devices |
Configuration Guide
