Description
The Elite Communications Kit is the complete mono UTV radio + intercom package: cabin talk without yelling, push-to-talk vehicle-to-vehicle, and music that ducks when someone keys up. Built so you are not hunting coax, antenna, PTTs, and a radio one SKU at a time — the core path is in the box. Choose 2- or 4-seat cable count, Standard / Bluetooth / Bluetooth & DSP, and Icom F5021 or Kenwood NX-1700.
Desert noise is free. Clear crew talk is not — that is what this kit is for.
- VOX cabin talk with auto music ducking
- Included PTT for radio transmit through headset or helmet kit
- Optional Bluetooth music + phone controls; optional DSP noise filtering
- Radio, coax, stealth antenna, PTTs, line filter, and basic U-bracket included
Not included: Headsets and helmet wiring kits are sold separately — add Elite over-the-head, G2, or helmet kits for every seat you need.
Most orders $300+ ship free in the continental US
Who it is for: UTV / SXS crews who want radio + intercom in one package for trail, race, or chase — not an intercom-only music box. Prefer true stereo music? See Trax Intercom Packages. Browse all intercom packages. Band primer: GMRS vs CB for off-roading.

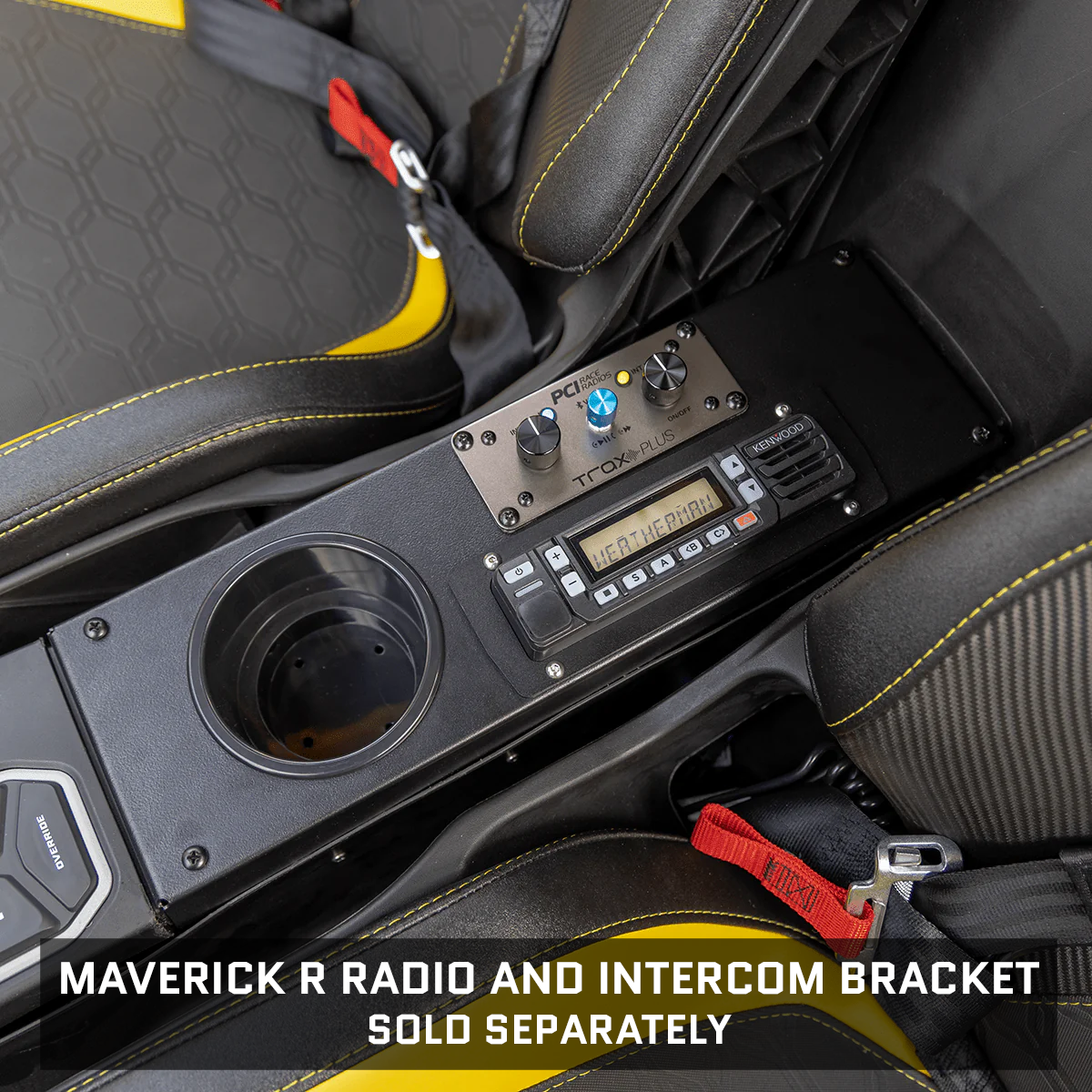

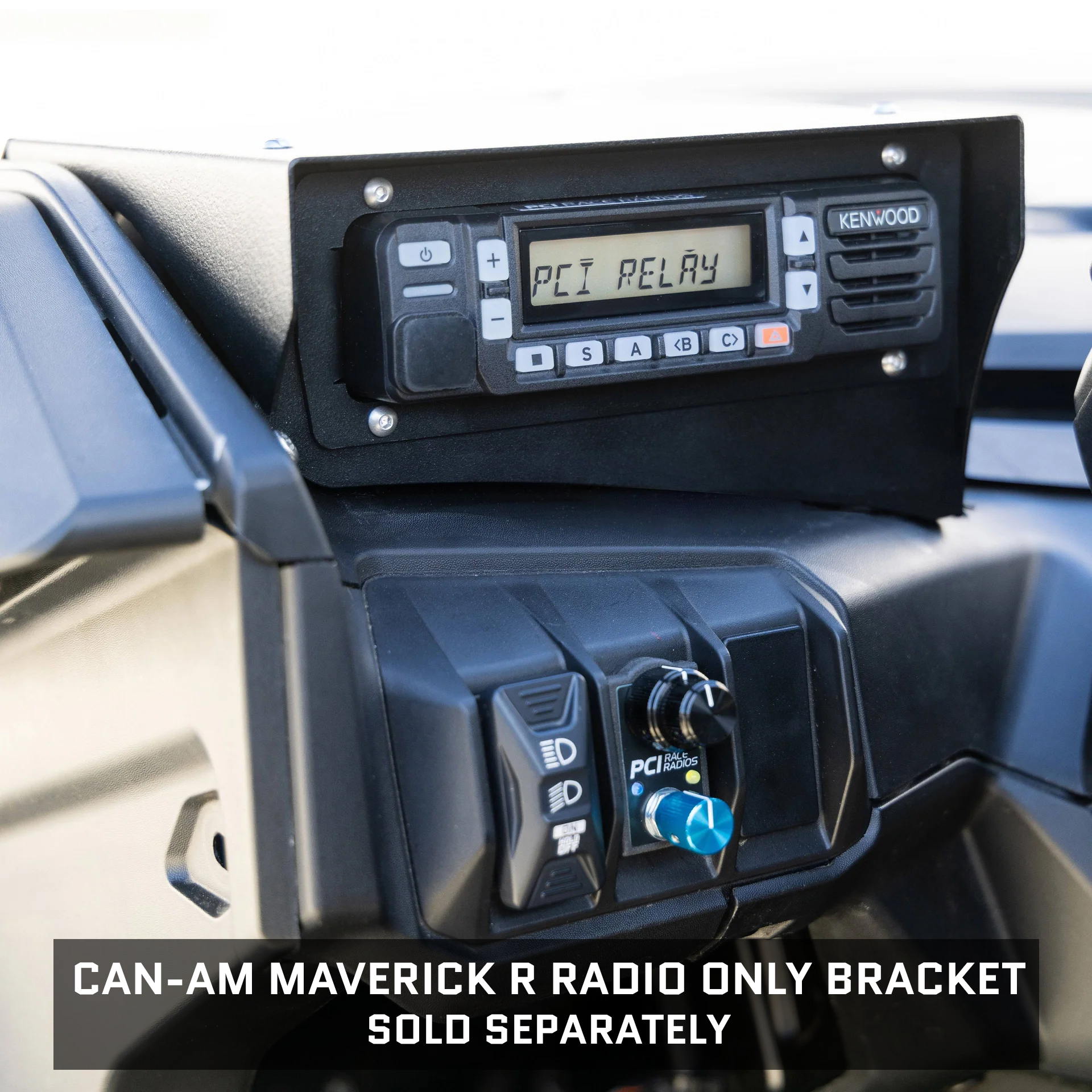

Why this package vs piecing parts: Matching intercom, radio, cables, PTTs, coax, stealth antenna, and KLF-2 filter ship together so fitment and channel programming stay consistent. Add mounts from communication mounting solutions for a cleaner install than the included basic U-bracket alone.
What's Included

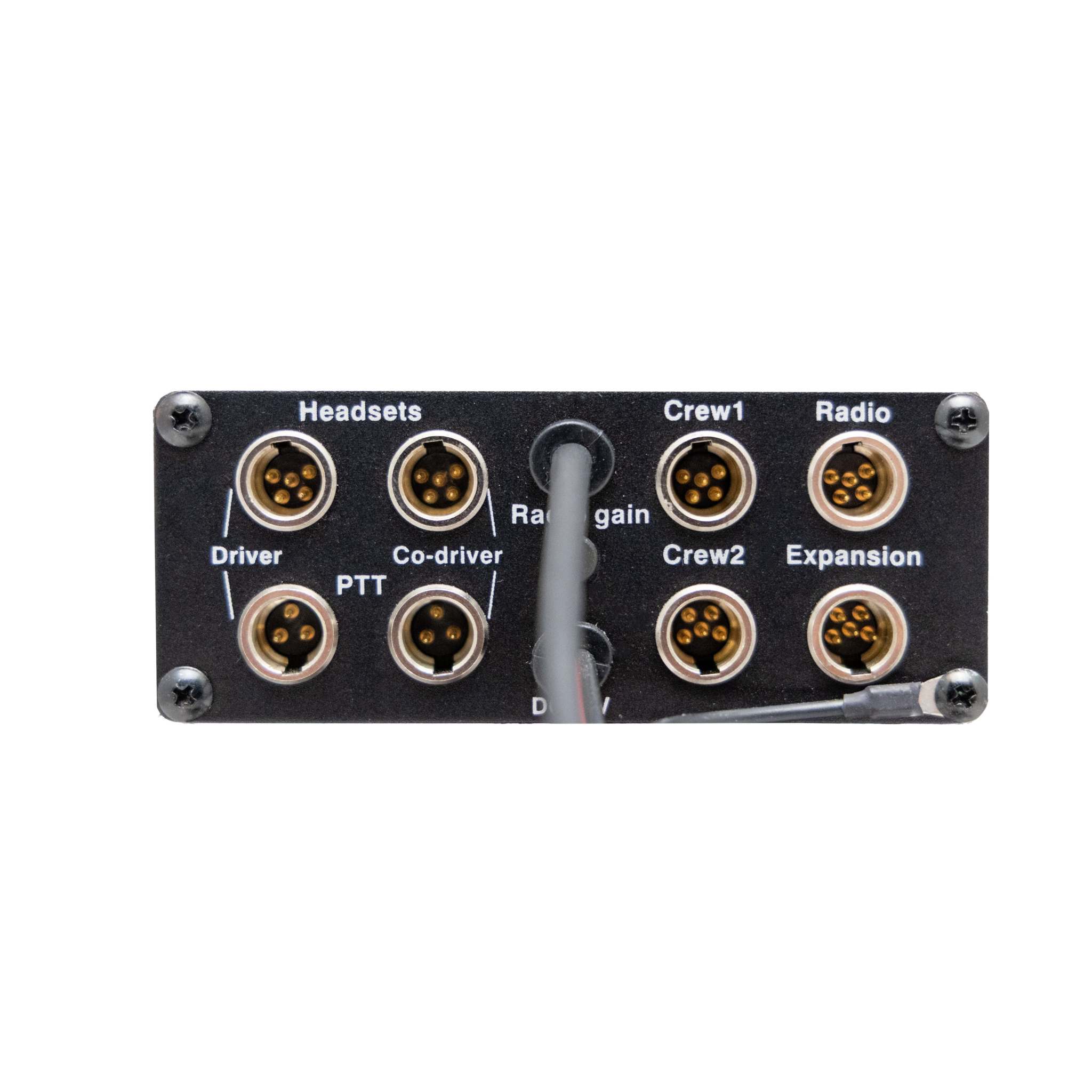

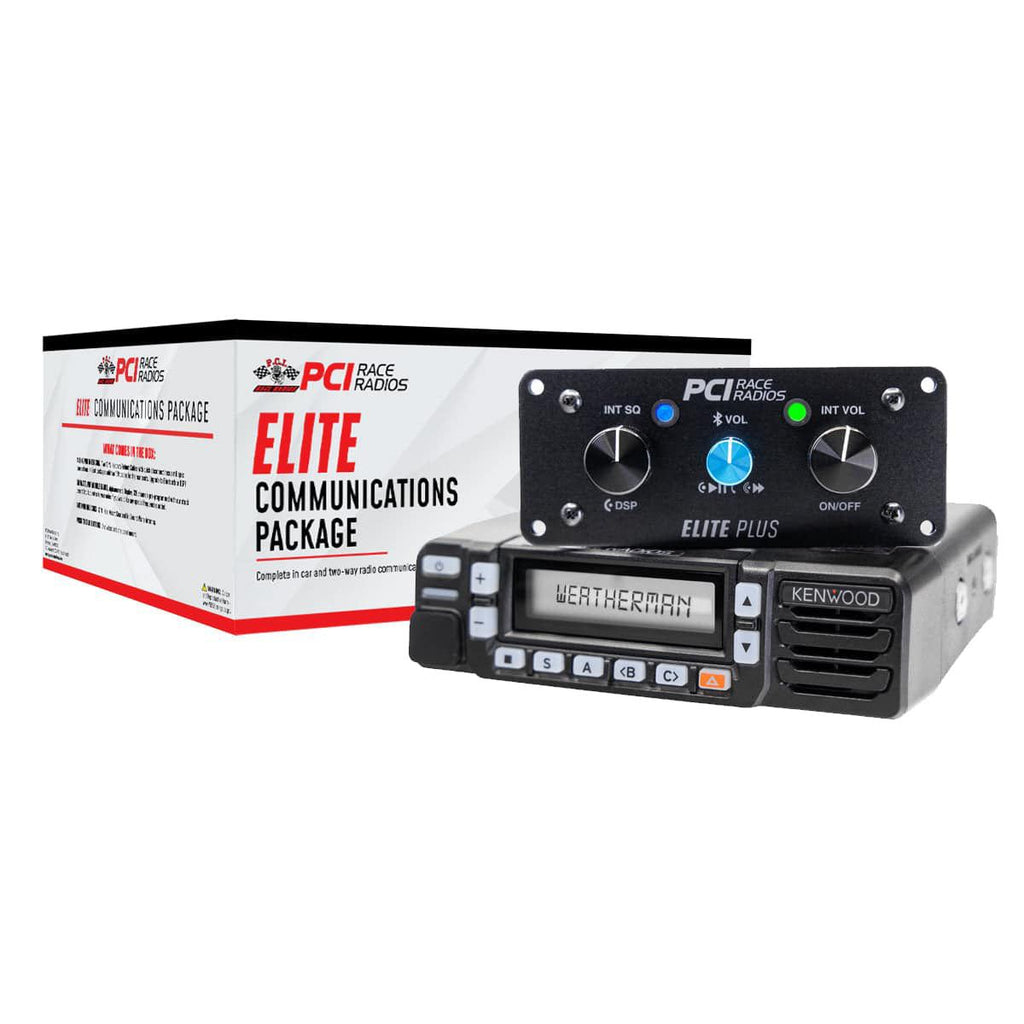

- Elite Plus Intercom

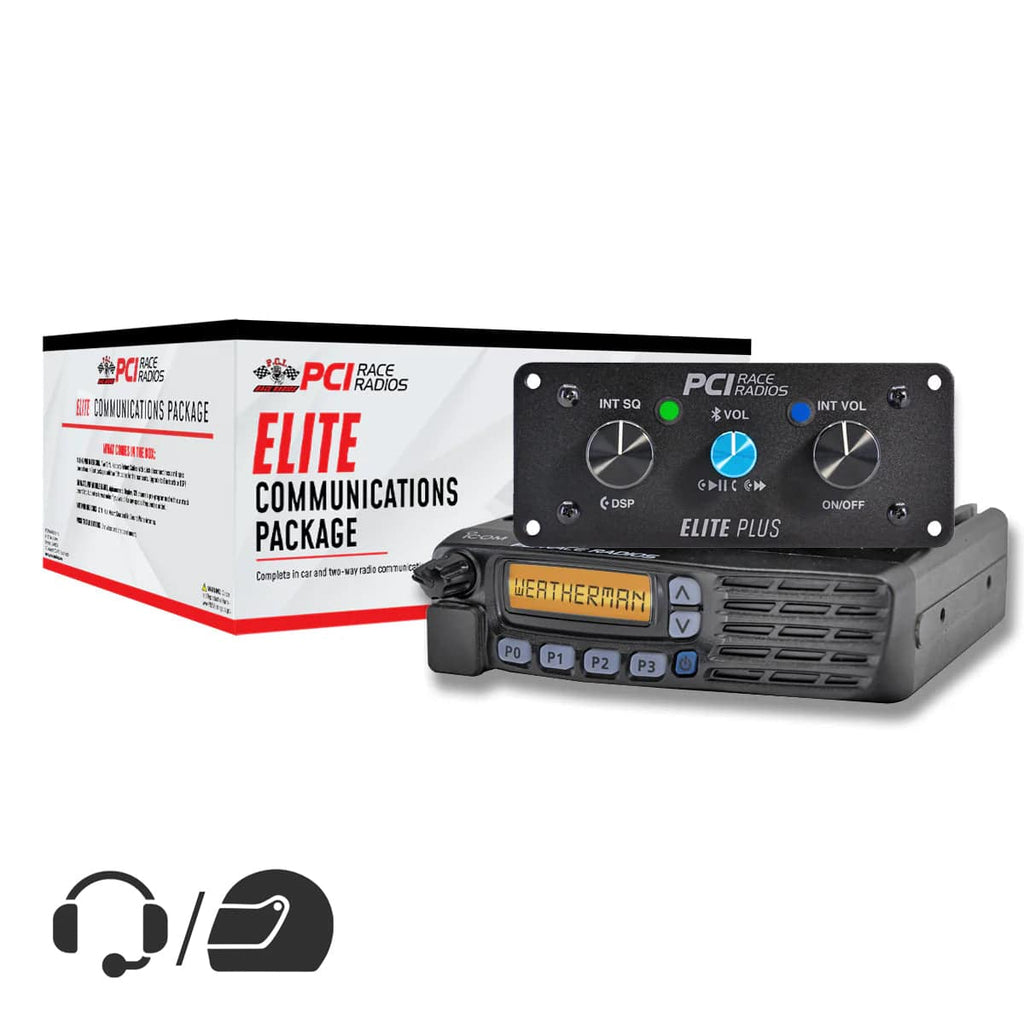

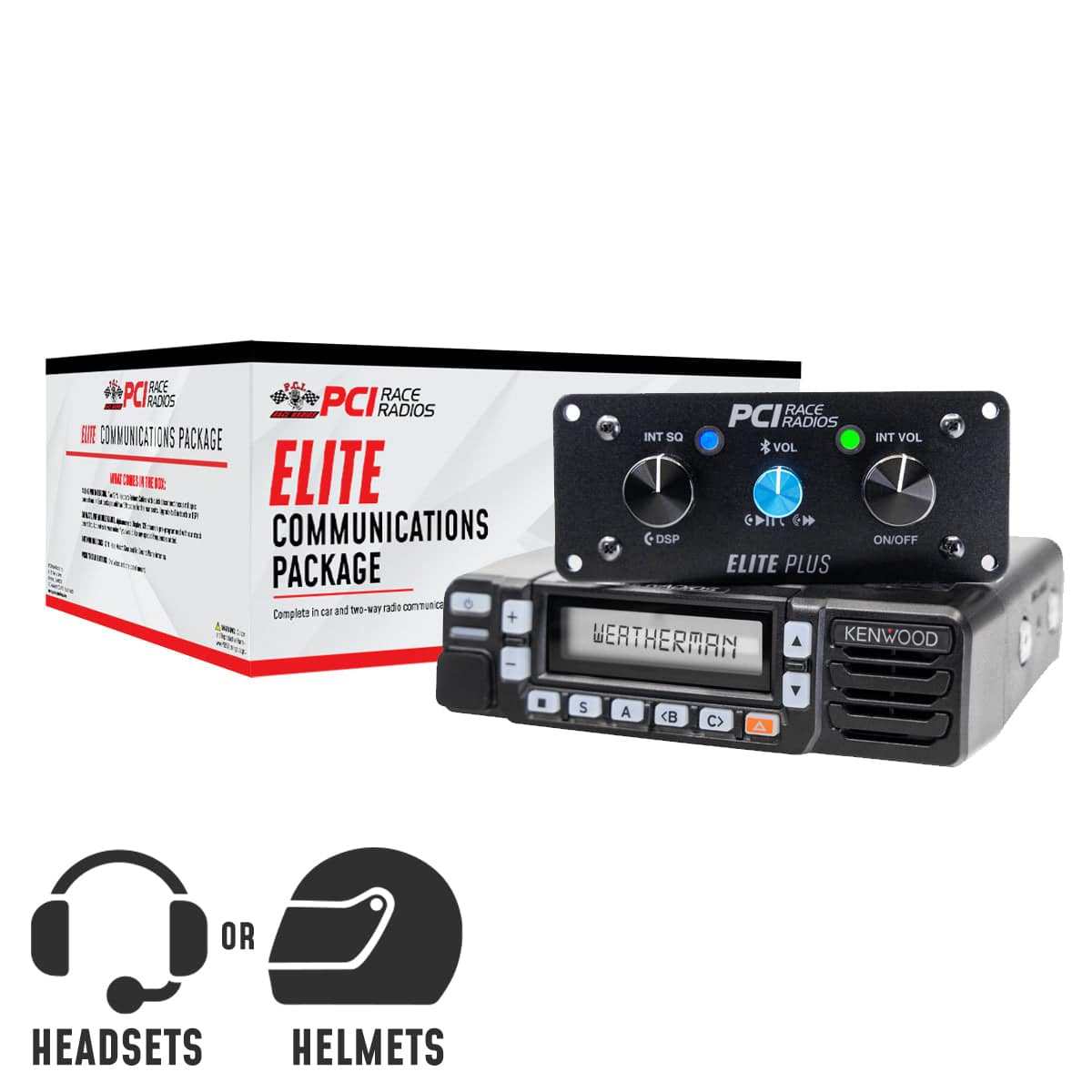

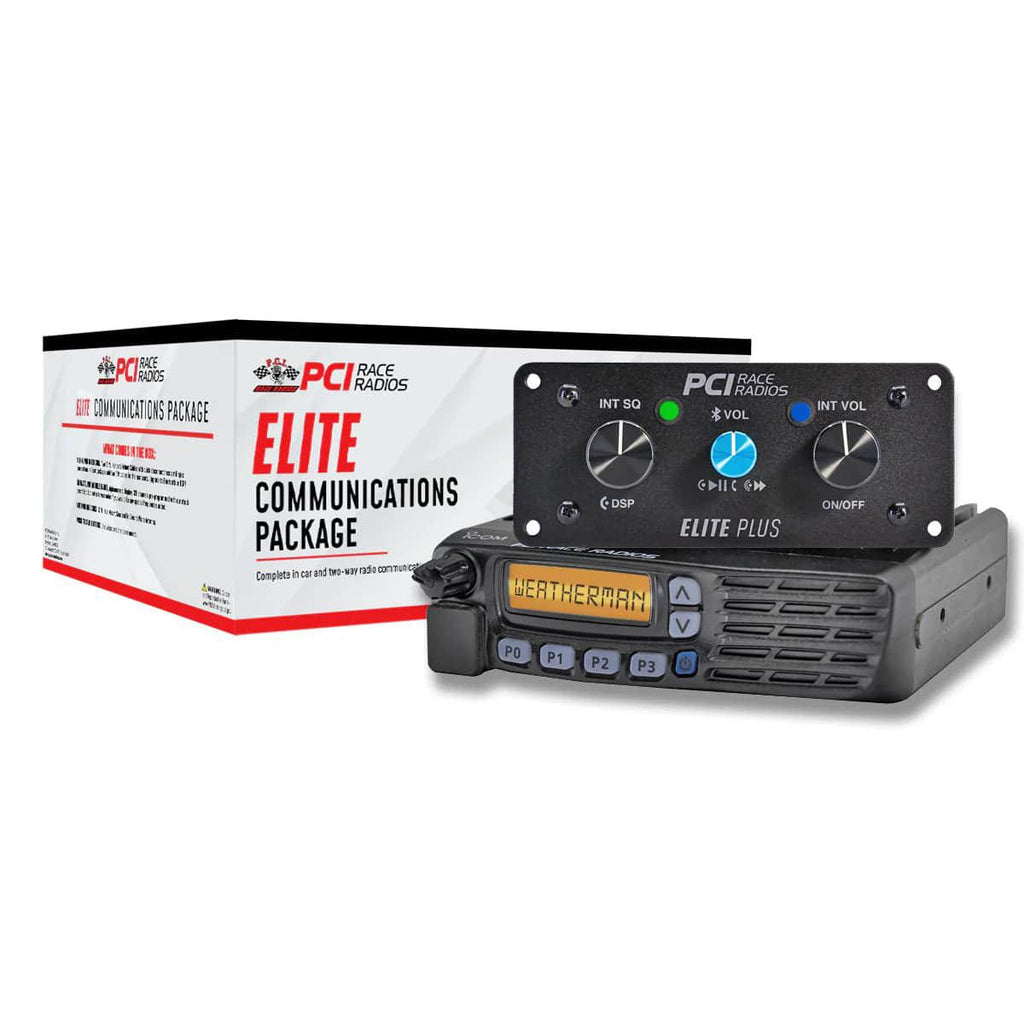

- Icom F5021 Mobile Radio or Kenwood NX-1700 Mobile Radio (per variant)
- (2) 12ft Elite Intercom Cables (4-seat variants include the matching seat-count cables)

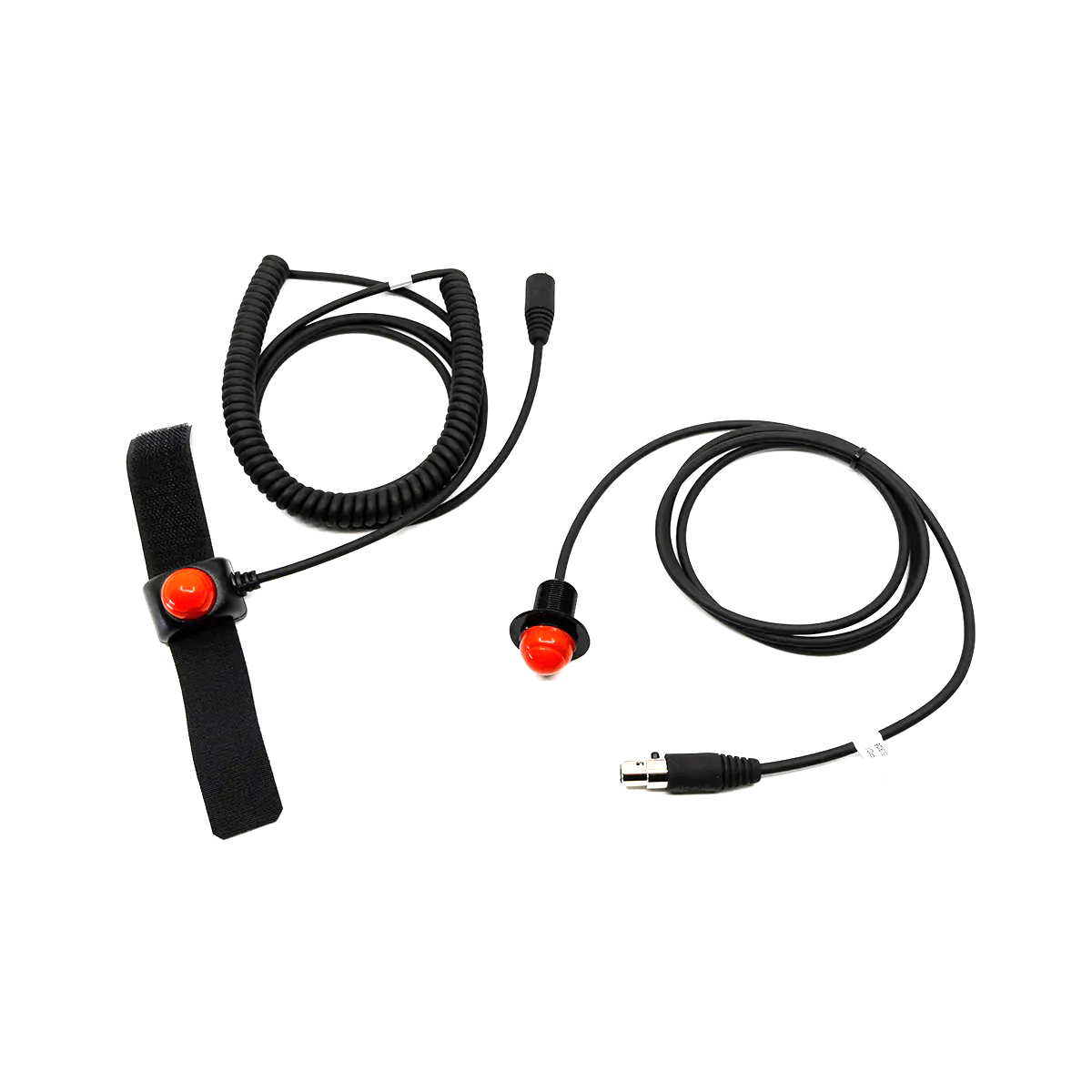

- Panel Mount PTT, female
- Velcro Mount PTT, female
- Phone Audio Input Cable (Standard and DSP units)
- 17ft Hole Mount Coax

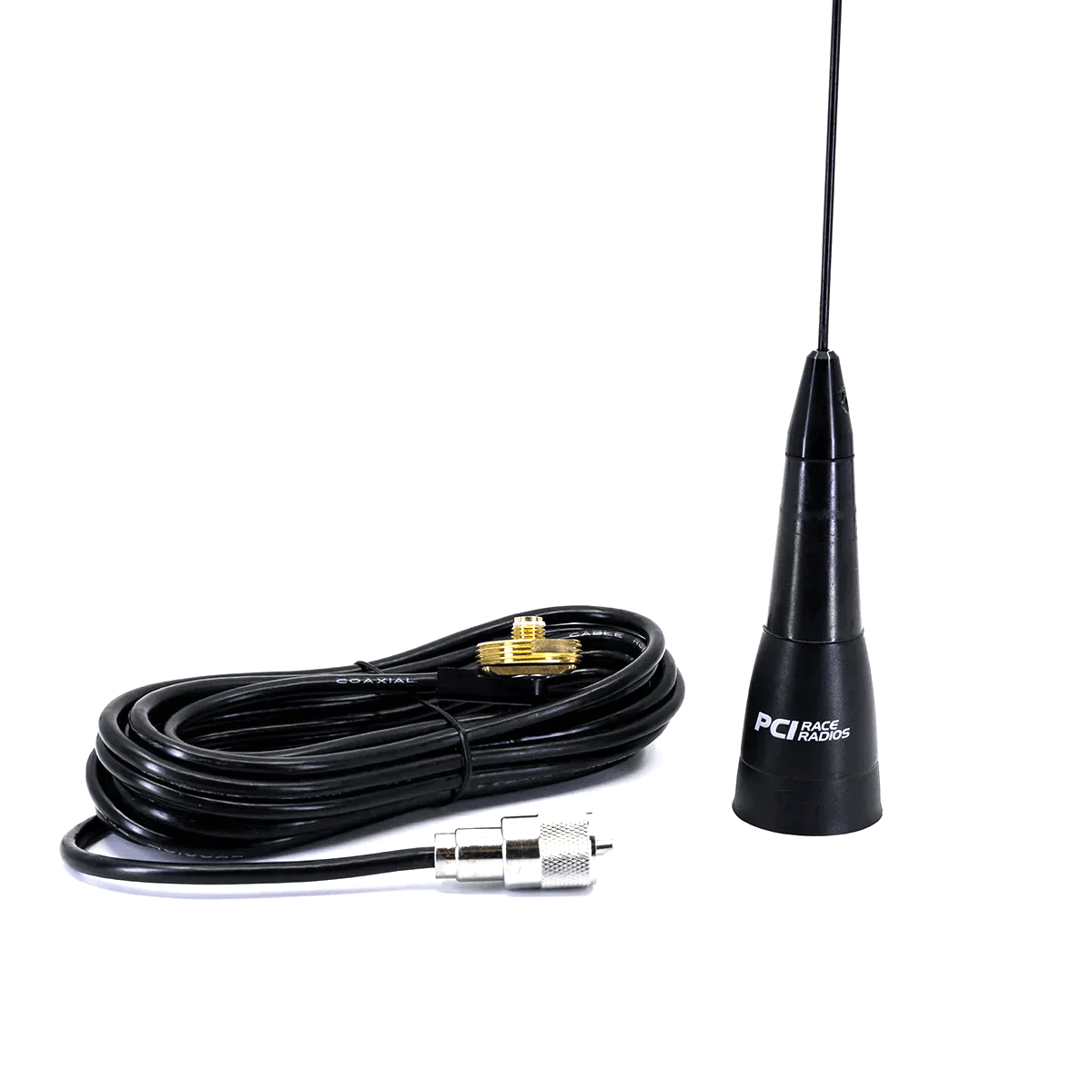

- Stealth No Ground Plane Antenna
- KLF-2 Line Filter
- Basic U-shaped radio mounting bracket
Options & Upgrades
- Bluetooth — music + pause/play and phone answer/end from the intercom
- DSP (Digital Signal Processing) — one-touch filtering that keeps voice and cuts drivetrain/exhaust noise
- Kenwood NX-1700 — stronger RF noise filtering for dual-stator UTVs (Can-Am, RZR Turbo S); lower transmit current draw; use a Kenwood-compatible bracket
- Pair Icom F5021 with our Magnetic Radio Cover for weather protection
- Upgrade any Icom radio package to a Midland GMRS MXT500 for no additional charge (not compatible with Icom or Kenwood brackets)

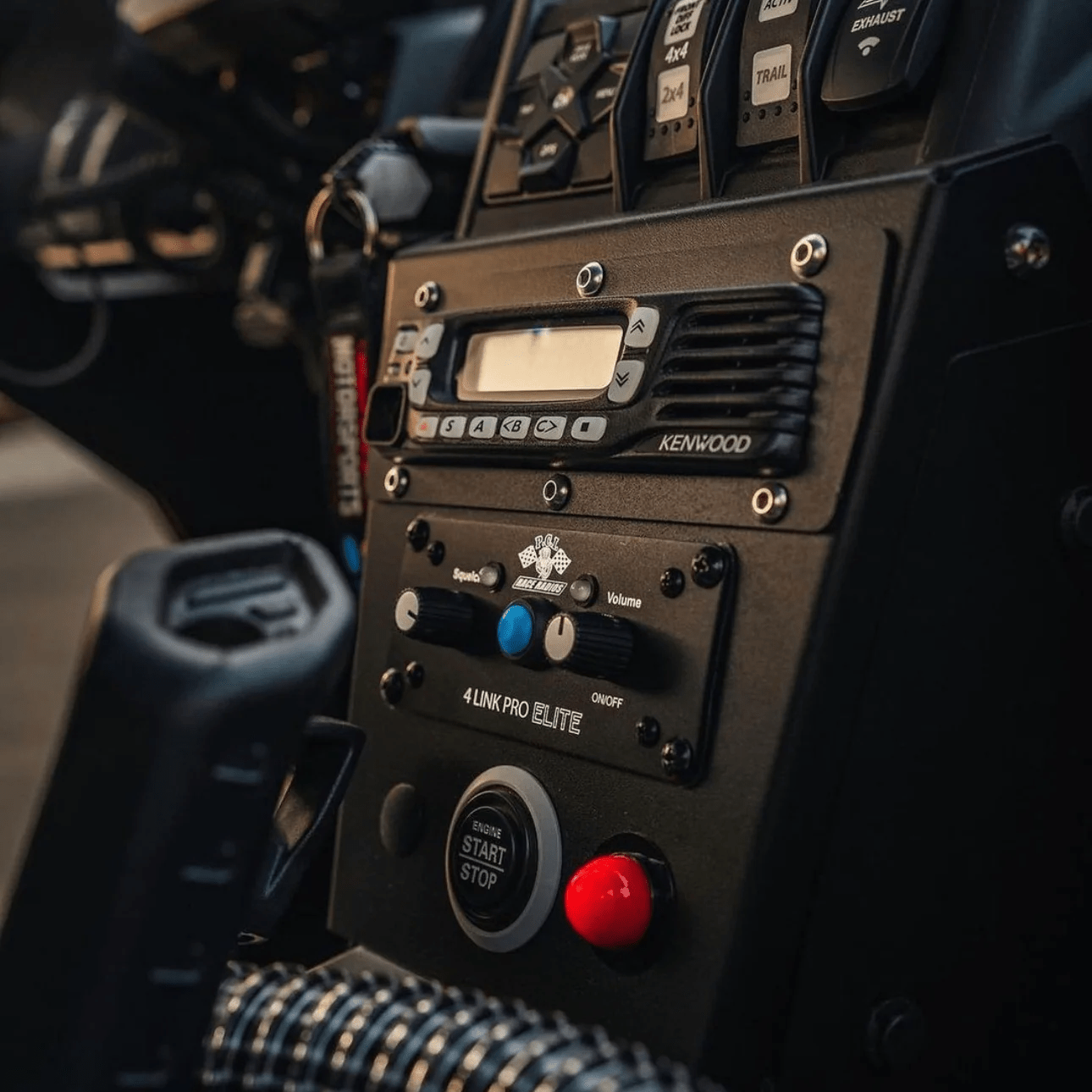

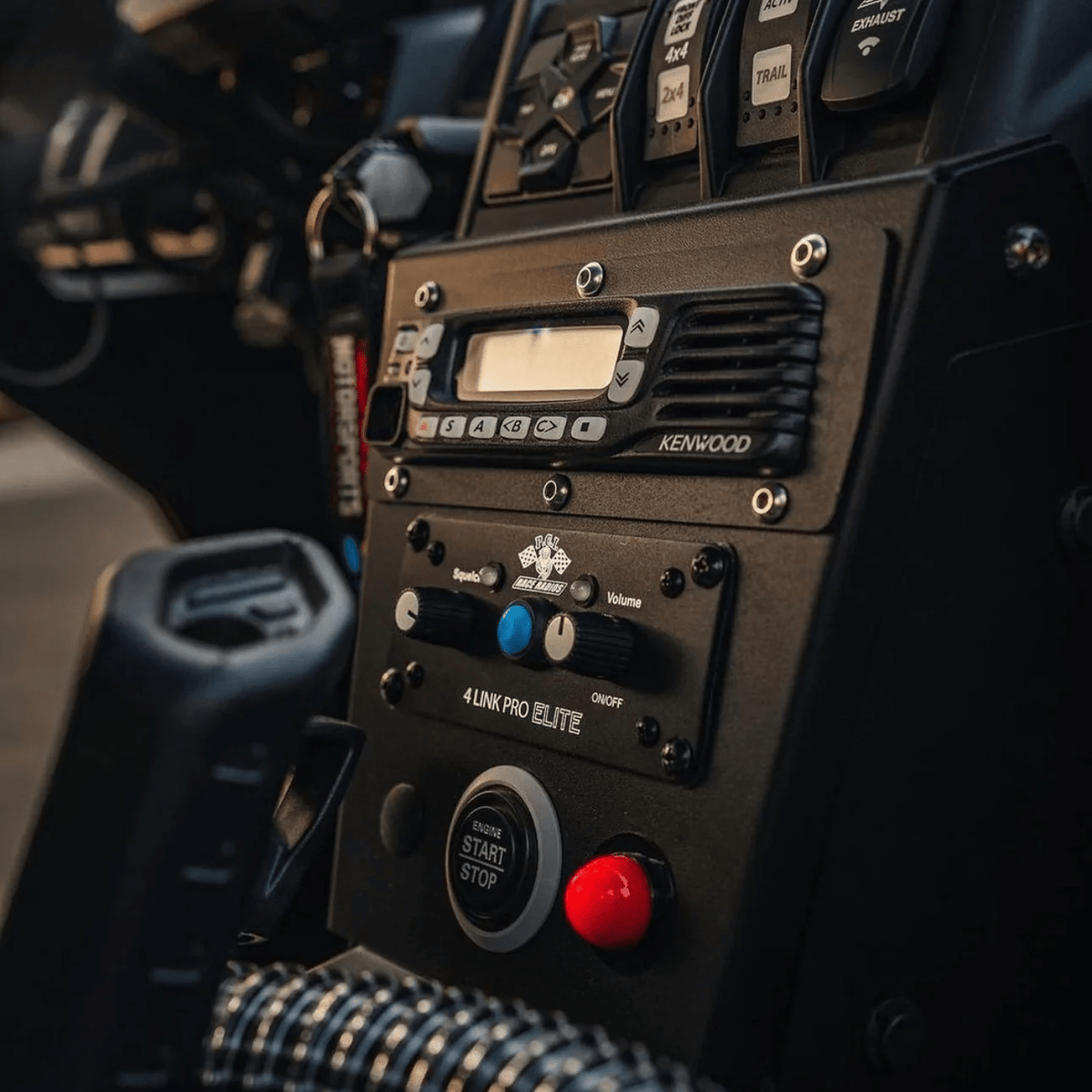

- 4 Link Pro Elite Intercom with Bluetooth and/or DSP
- (2) 16ft Elite Intercom Cables

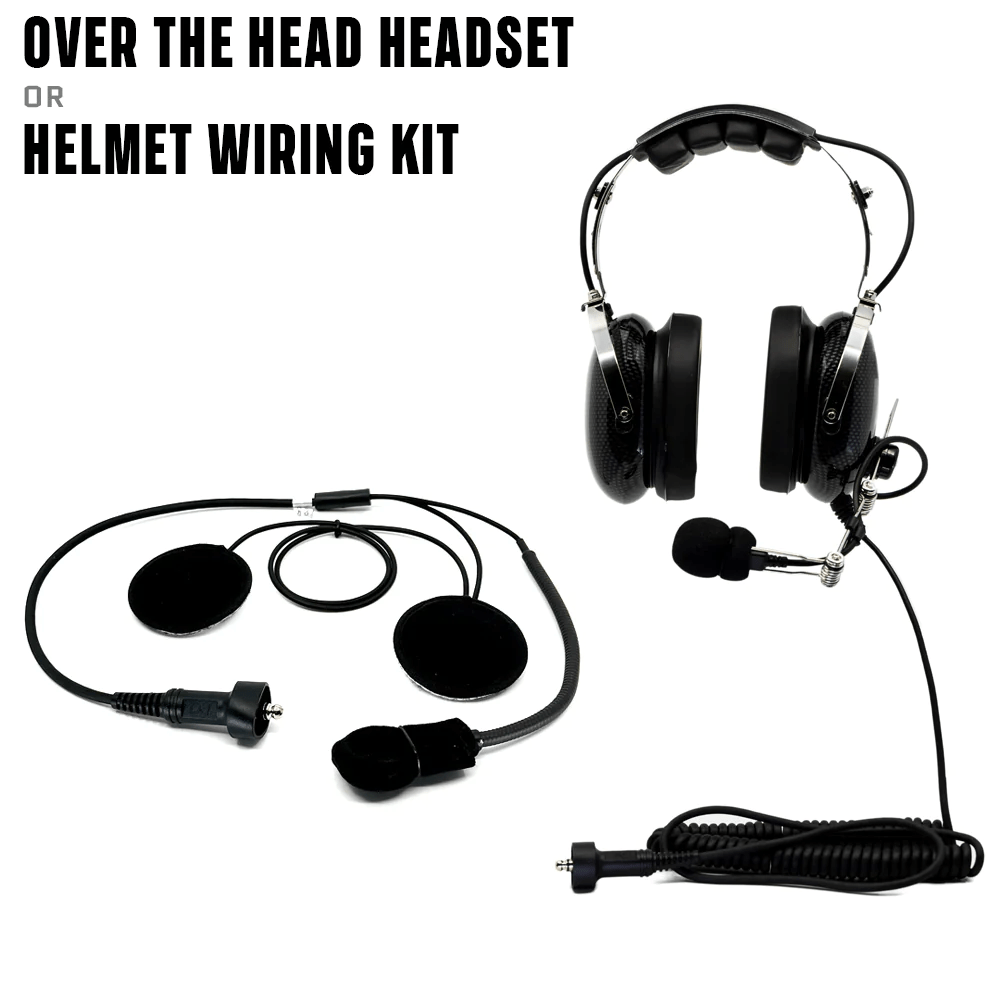

- (2 or 4) Elite Over the Head Headsets, Elite Helmet Wiring Kits, or Elite G2 Headsets
Install / use notes
- Plan headset or helmet-kit count for every occupied seat before checkout
- Fuse guidance is in Specifications; follow install manuals in Downloads
- For dual-stator machines, prefer Kenwood NX-1700 and a Kenwood-compatible bracket
Specifications
- Elite Intercom: 2.6A draw (5amp fuse recommended)
- Icom F5021 Radio: 50W @ 13.8V, 128 channels, 14A draw on transmit (15amp fuse recommended)
- Kenwood NX-1700 Radio: 50W @ 13.8V, 260 channels, 13A draw on transmit (15amp fuse recommended), IP54 rated
- Elite Headset: 150ohm low-gain mic; 300ohm 50mm high-fidelity speakers
- Elite Helmet Wiring Kit: 150ohm low-gain mic; 32ohm 36mm high-fidelity speakers
- Elite G2 Headset: 150ohm low-gain mic; 180ohm high-fidelity speakers
Warranty, FCC & Trust
- 5-year manufacturer defect warranty on intercom; 2-year on radios and cables
- FCC Part 90 mobile pre-programmed with PCI licensed channels. License sharing details: PCI Race Radios FCC License Agreement
- Most orders $300+ ship free in the continental US
