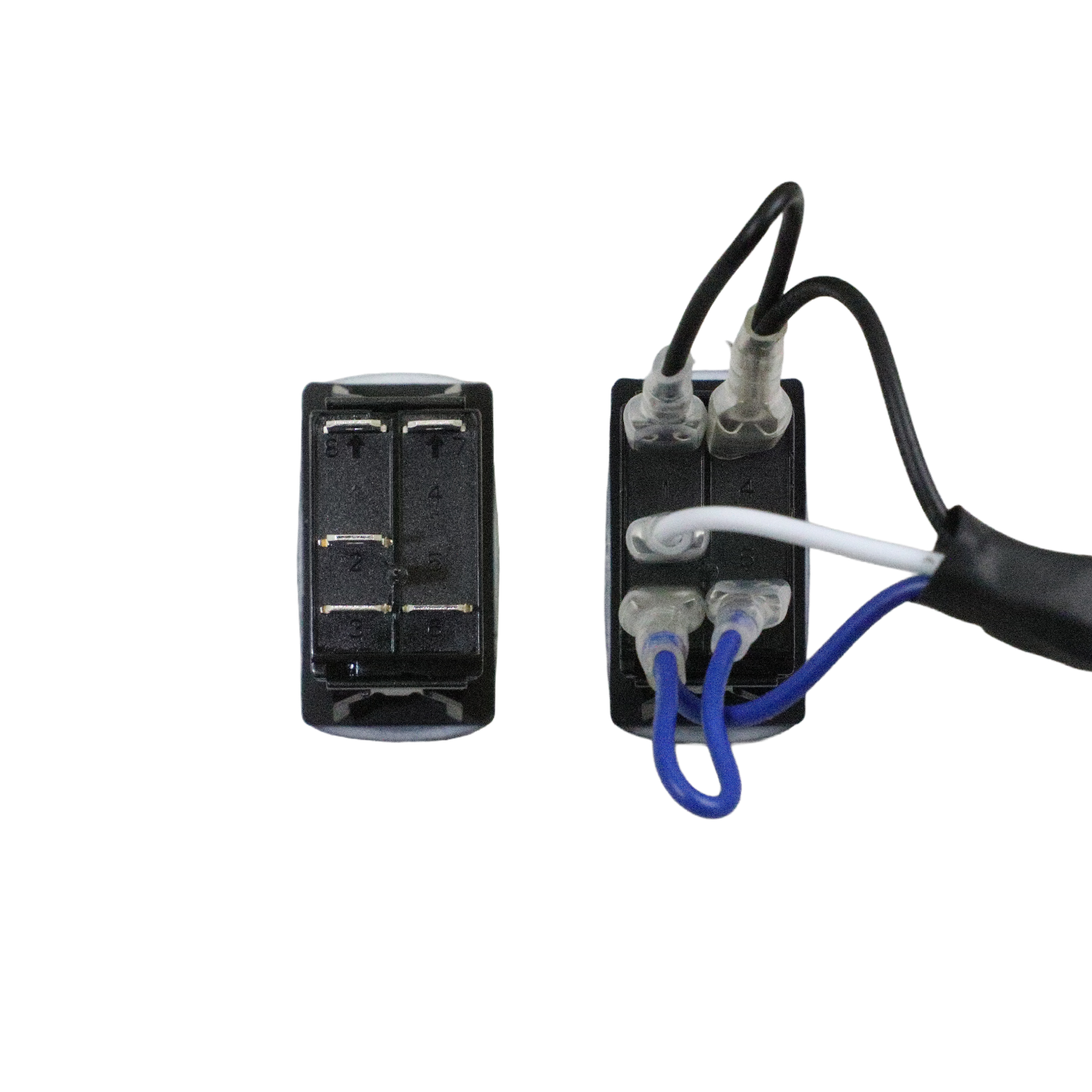

5150 Wiring Harness + Optional Rocker Switch

5150 WhipsSKU: WH-2505

Rocker Switch Option: No Switch (Harness Only)
Price:
Sale price$20.99

Shipping calculated at checkout

Description

5150 Wiring Harness + Optional Rocker Switch

Clean power. Cleaner install.

Built for 5150 setups — gives you a solid fused power lead, cleaner routing, and a proper foundation for your whip system.

5150 Ready
Built for 5150 whip systems
Clean Install
Fused power lead + easy routing
Off-Road Built
Durable for real abuse

This 5150 Wiring Harness gives you a cleaner, safer way to power your whip setup. It’s designed to support multiple 5150 configurations — including 187 systems, controller-based whips, Hyper Color, and direct-power setups.

Important: This is not a one-click universal plug. Depending on your setup, you may still need to connect the correct power pigtail, controller lead, RCA/DC connection, or 187 plug.

Bottom line — this harness cleans up your install and gives you a proper power backbone. Final connections depend on your exact setup.

Add the 5150 Waterproof Rocker Switch for clean, dash-mounted control.

Features
  • Built specifically for 5150 Whip systems
  • 10-foot lead for flexible routing (SxS, trucks, buggies)
  • Inline fuse for protected power delivery
  • Heavy-duty wiring for off-road environments
  • Simplifies battery → switch → controller wiring
  • Supports multiple 5150 power configurations
Connection Notes
  • 187 systems may use 5-pin signal/power depending on controller
  • Bluetooth, Remote, Hyper Color may require DC/RCA or pigtail connection
  • Final wiring depends on whip + controller combination
  • Not a universal plug-and-play harness
Rocker Switch Options
  • Red, Blue, or White backlit 5150 logo
  • Sealed, weatherproof design
  • OEM-style dash fitment
  • Optional add-on
Compatibility
  • 5150 Whip systems
  • 187 (dual/quad), Bluetooth, Remote, Hyper Color
  • Direct power whip setups
  • May require correct connector/pigtail per setup
What’s Included
  • 5150 Wiring Harness (WH-2505)
  • Optional: 5150 Waterproof Rocker Switch
Ideal For
  • Clean 5150 whip installs
  • 187 controller setups (dual or quad)
  • Bluetooth / Hyper Color systems
  • Dash-mounted on/off control
  • Proper fused power routing

Connection Flow

Battery → Switch → Controller → Whips

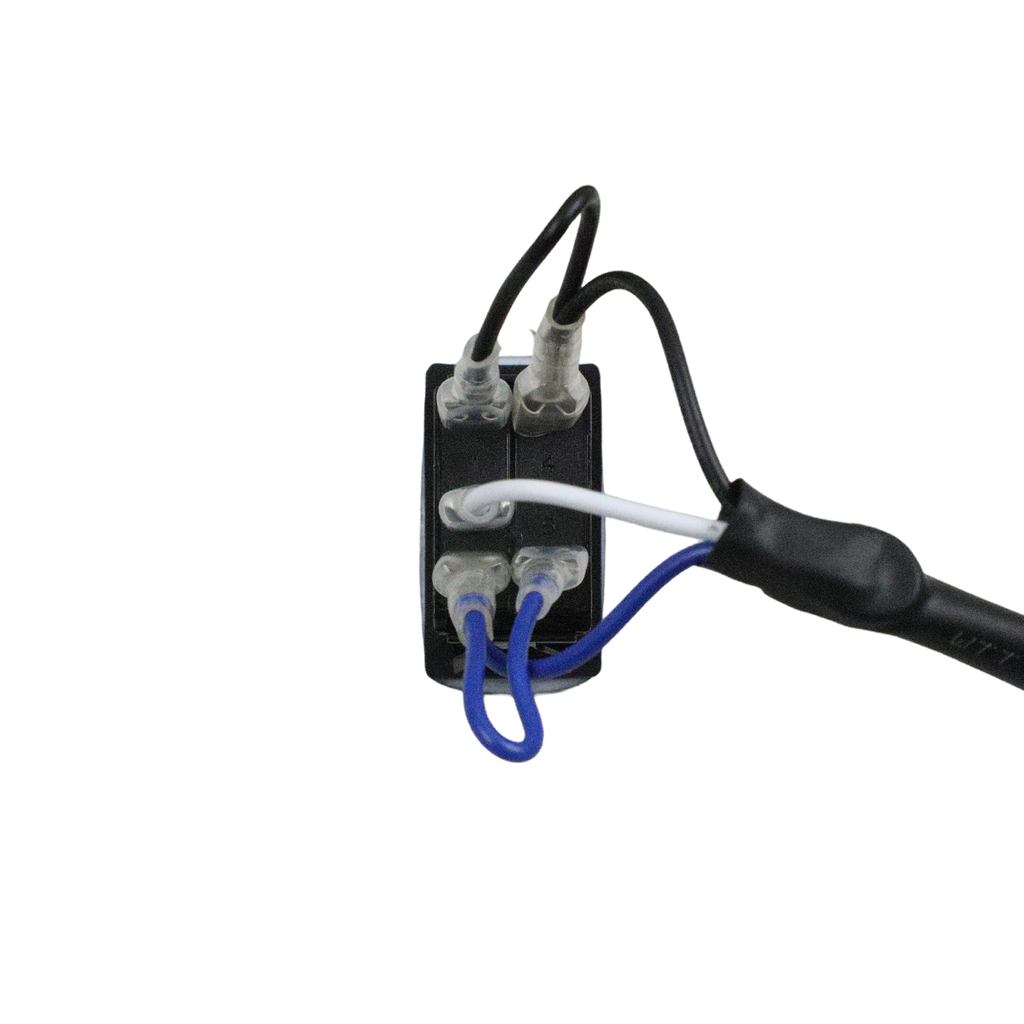

Wire Color Guide

  • RED (fused) — Battery Positive (+)
  • BLACK (fused) — Battery Ground (−)
  • BLUE — Bottom switch pins
  • WHITE — Middle switch pin
  • BLACK (x2) — Top switch pins

Route away from heat and moving parts. Confirm fuse is installed before powering on.

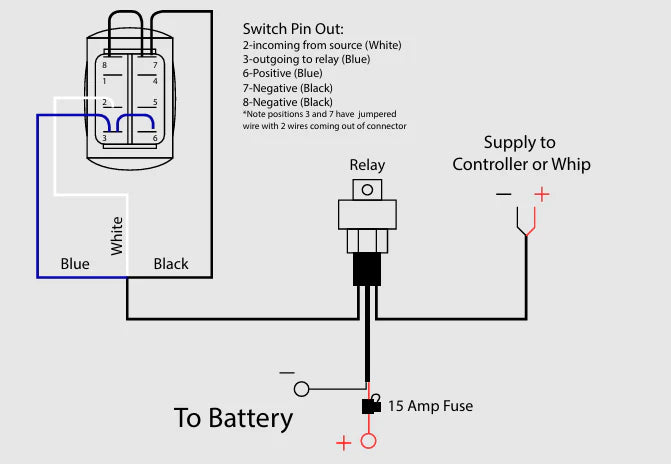

5150 Whips wiring harness schematic diagram
