Comlink X and Kenwood NX-1700 Race Package

PCI puts together our best components for your Racing Applications. These tuned, tested complete packages come in different configurations to best suit each racer. This package includes the PCI Comlink 10 (X) Intercom. This intercom has a driver isolation feature, audio input, audio output for cameras, extremely clear two person intercom with volume controls for driver and co-driver. The NX-1700 is the ideal Kenwood for smaller cars, batteries or budgets!

Upgrade your intercom to PCI Exclusive Bluetooth and/or DSP Technology.

• DSP - "Digital Signal Processing" electronically removes all noise from the intercom system except your voice. This is a MUST have for vehicles without a windshield, headsets, V8 cars, or loud exhaust. Simple, one touch operation on the face of the intercom allows you to turn on DSP when you need it, and turn it off when you don't.
• Bluetooth - Pair your Cell phone or Bluetooth capable music device player for wireless music and phone calls. Listen to your music without connecting any wires or have a cell phone conversation without ever connecting your phone to your intercom system. Great for hands free driving! Simple, one touch operation on the face of the intercom allows you to play or pause while music is playing, or answer incoming phone calls!

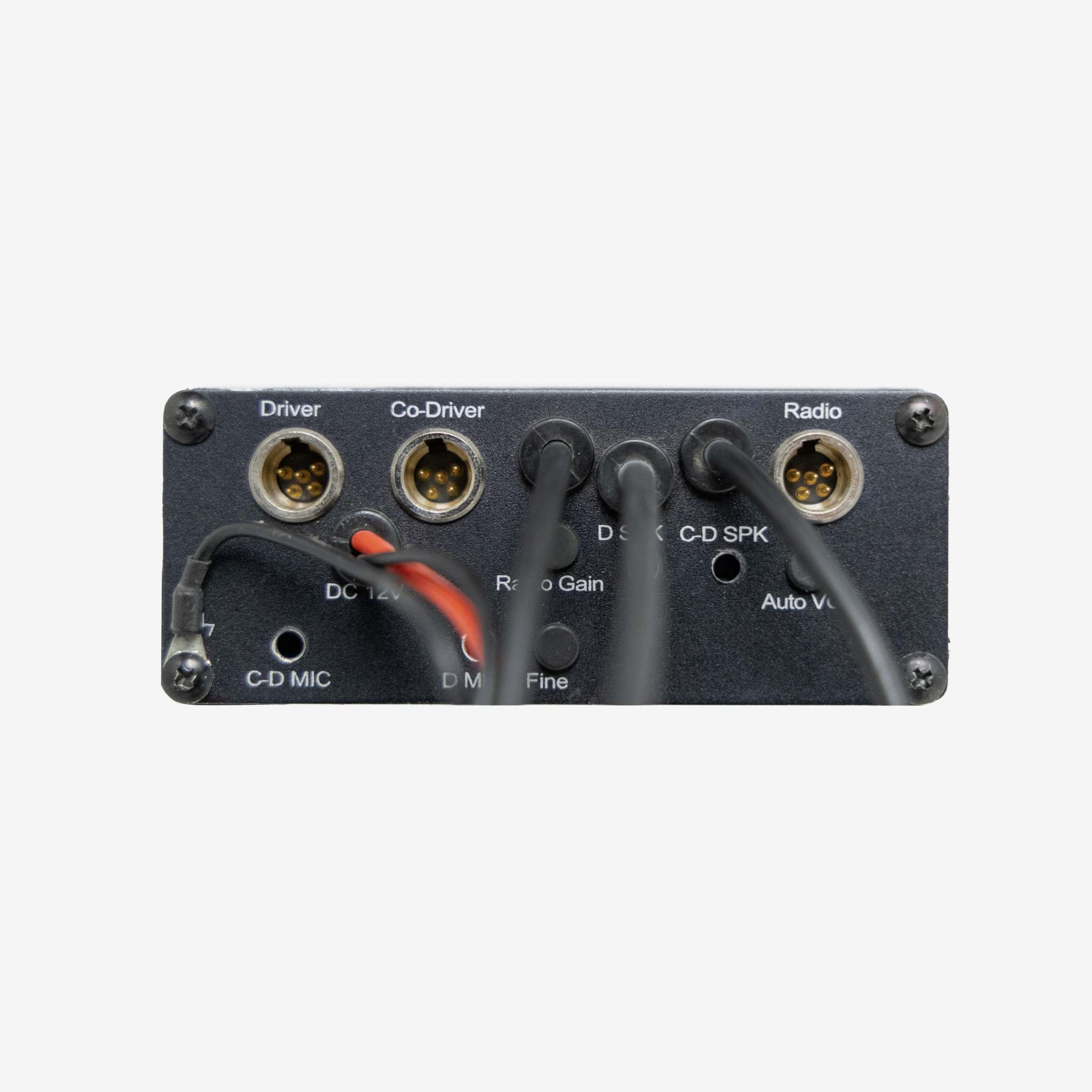

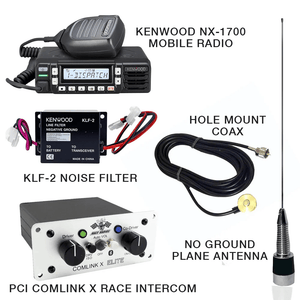

• Comlink X Race Intercom
• Kenwood NX-1700 Mobile Radio

• Kenwood KLF-2 Power Noise Filter
• (1) 12ft Elite Intercom Cable
• (1) 16ft Elite Intercom Cable
• (1) Panel Mount PTT, Male
• (1) Velcro Mount PTT, Male
• 17ft Hole Mount Coax
• Stealth No Ground Plane Antenna

• Comlink X Intercom: 3.6A draw (5A fuse recommended)
• Kenwood NX-1700 Radio: 50W @13.8v, 136-174MHz, 128 channels, Alphanumeric display, IP54 Rated, 12.4A draw upon transmit (15A fuse recommended)
• 5 year manufacturer defect warranty on intercom, 2 year on radio and cables

Kenwood NX-1700 Quick Reference Guide

Comlink X Instructions
