Built for the Can-Am Maverick X3: this Elite Communications Kit is the complete mono radio + intercom package — cabin talk, push-to-talk to chase/race traffic, and music that ducks when someone keys up. Same Elite kit path as our hub package, framed for X3 dual-stator realities. Choose 2- or 4-seat cables, Standard / Bluetooth / Bluetooth & DSP, and Icom F5021 or Kenwood NX-1700.
X3s already make enough electrical noise. Your crew talk should not join the band.
Can-Am dual-stator tip: We recommend the Kenwood NX-1700 on X3 and other dual-stator UTVs — stronger RF noise filtering and lower current to hit full transmit power. Use a Kenwood-compatible bracket. Mounting help: communication mounting solutions.
- VOX cabin talk with auto music ducking
- Included PTT for radio through headset or helmet kit
- Optional Bluetooth music/phone controls; optional DSP filtering
- Radio, coax, stealth antenna, PTTs, KLF-2 line filter, and basic U-bracket in the kit
Not included: Headsets and helmet wiring kits are sold separately — add Elite headsets or helmet kits for every seat.
Most orders $300+ ship free in the continental US
Who it is for: Can-Am Maverick X3 owners who want radio + intercom in one package for trail, race, or chase. Stereo-music-first buyers: Trax Intercom Packages. All kits: intercom packages. Band primer: GMRS vs CB for off-roading.
Why this package vs piecing parts: Intercom, radio, cables, PTTs, coax, antenna, and line filter ship as one matched kit — then add X3-friendly mounts from the mounting collection instead of guessing brackets.
What's Included

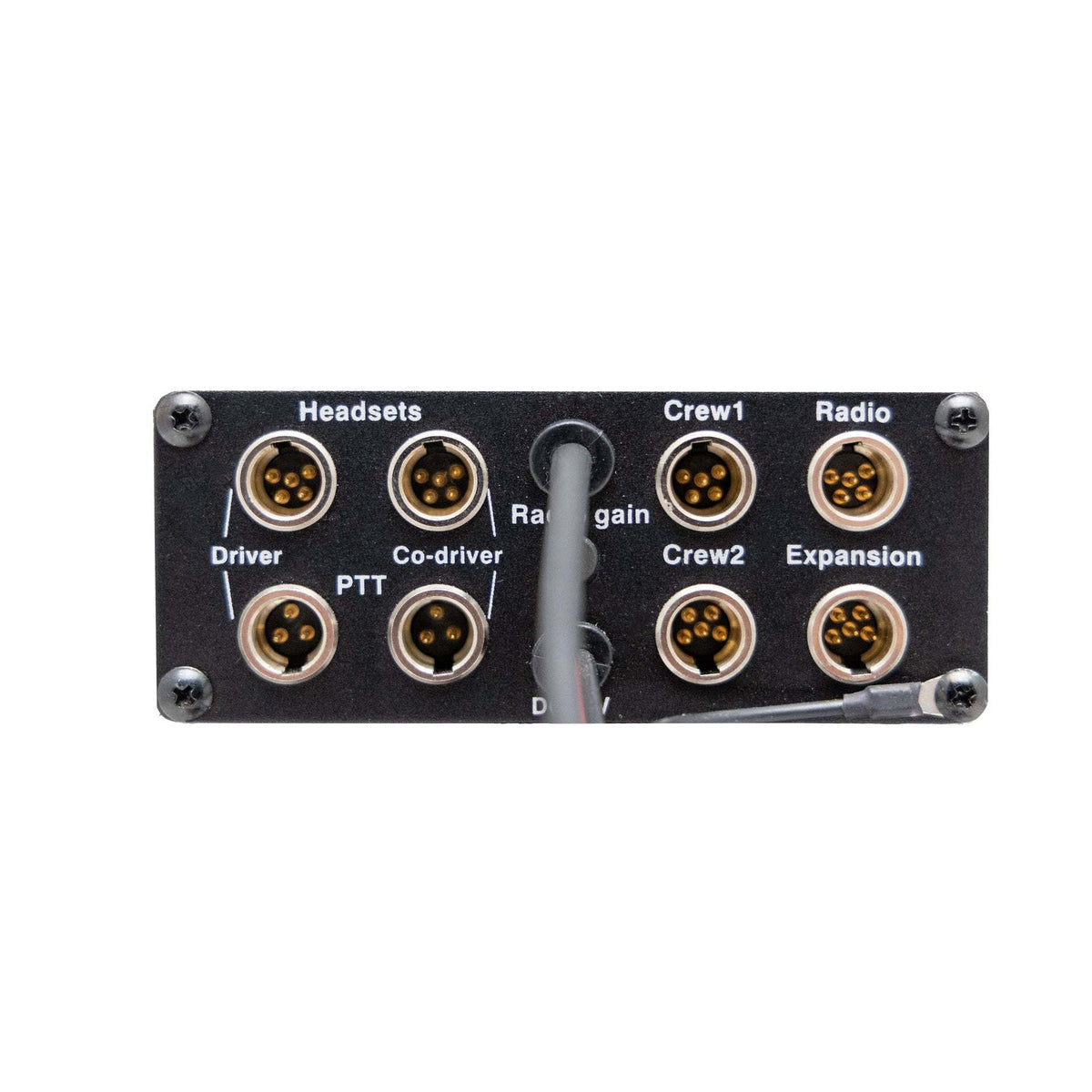

- Elite Plus Intercom
- Icom F5021 Mobile Radio or Kenwood NX-1700 Mobile Radio (per variant)
- (2) 12ft Elite Intercom Cables (4-seat variants include matching seat-count cables)

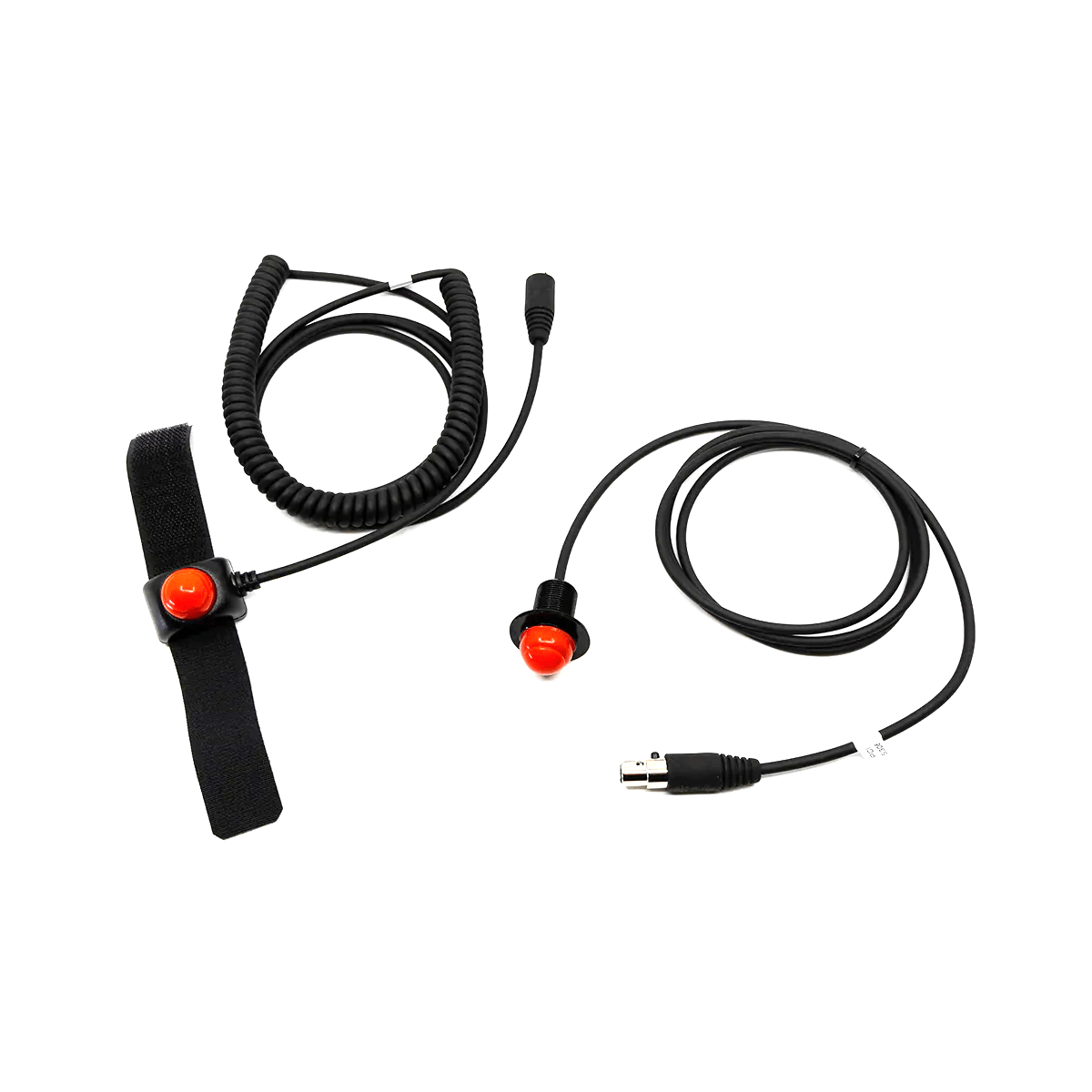

- Panel Mount PTT, female
- Velcro Mount PTT, female
- Phone Audio Input Cable (Standard and DSP units)

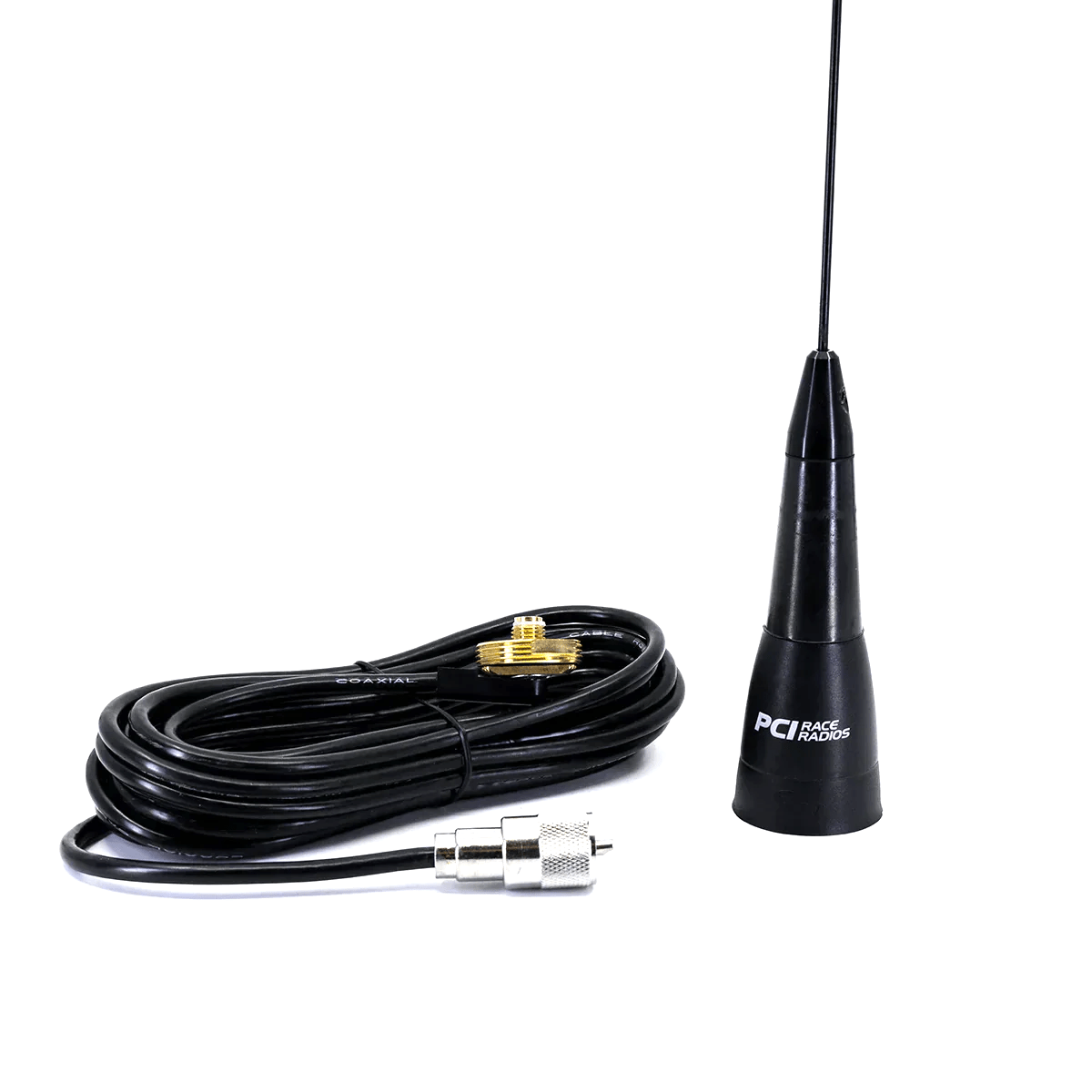

- 17ft Hole Mount Coax
- Stealth No Ground Plane Antenna
- KLF-2 Line Filter
- Basic U-shaped radio mounting bracket
Options & Upgrades
- Bluetooth and/or DSP on the Elite intercom
- Kenwood NX-1700 for dual-stator RF noise (recommended on Can-Am X3)
- Upgrade any Icom package to a Midland GMRS MXT500 for no additional charge (not compatible with Icom or Kenwood brackets)
- 4 Link Pro Elite Intercom with Bluetooth and/or DSP
- (2) 16ft Elite Intercom Cables
- (2 or 4) Elite Over the Head Headsets, Elite Helmet Wiring Kits, or Elite G2 Headsets
- Vehicle-specific mounts: communication mounting solutions
Install / use notes
- On X3 dual-stator builds, plan Kenwood NX-1700 + Kenwood-compatible bracket
- Add headsets/helmet kits for every seat; use mounting collection for cleaner radio/intercom placement than the basic U-bracket alone
- Follow Elite install manuals and fuse guidance in Specifications / Downloads
Specifications
- Elite Intercom: 2.6A draw (5amp fuse recommended)
- Icom F5021 Radio: 50W @ 13.8V, 128 channels, 14A draw on transmit (15amp fuse recommended)
- Kenwood NX-1700 Radio: 50W @ 13.8V, 260 channels, 13A draw on transmit (15amp fuse recommended), IP54 rated
- Elite Headset: 150ohm low-gain mic; 300ohm 50mm high-fidelity speakers
- Elite Helmet Wiring Kit: 150ohm low-gain mic; 32ohm 36mm high-fidelity speakers
- Elite G2 Headset: 150ohm low-gain mic; 180ohm high-fidelity speakers
Warranty, FCC & Trust
- 5-year manufacturer defect warranty on intercom; 2-year on radios and cables
- FCC Part 90 mobile pre-programmed with PCI licensed channels. License sharing: PCI Race Radios FCC License Agreement
- Most orders $300+ ship free in the continental US
Downloads
