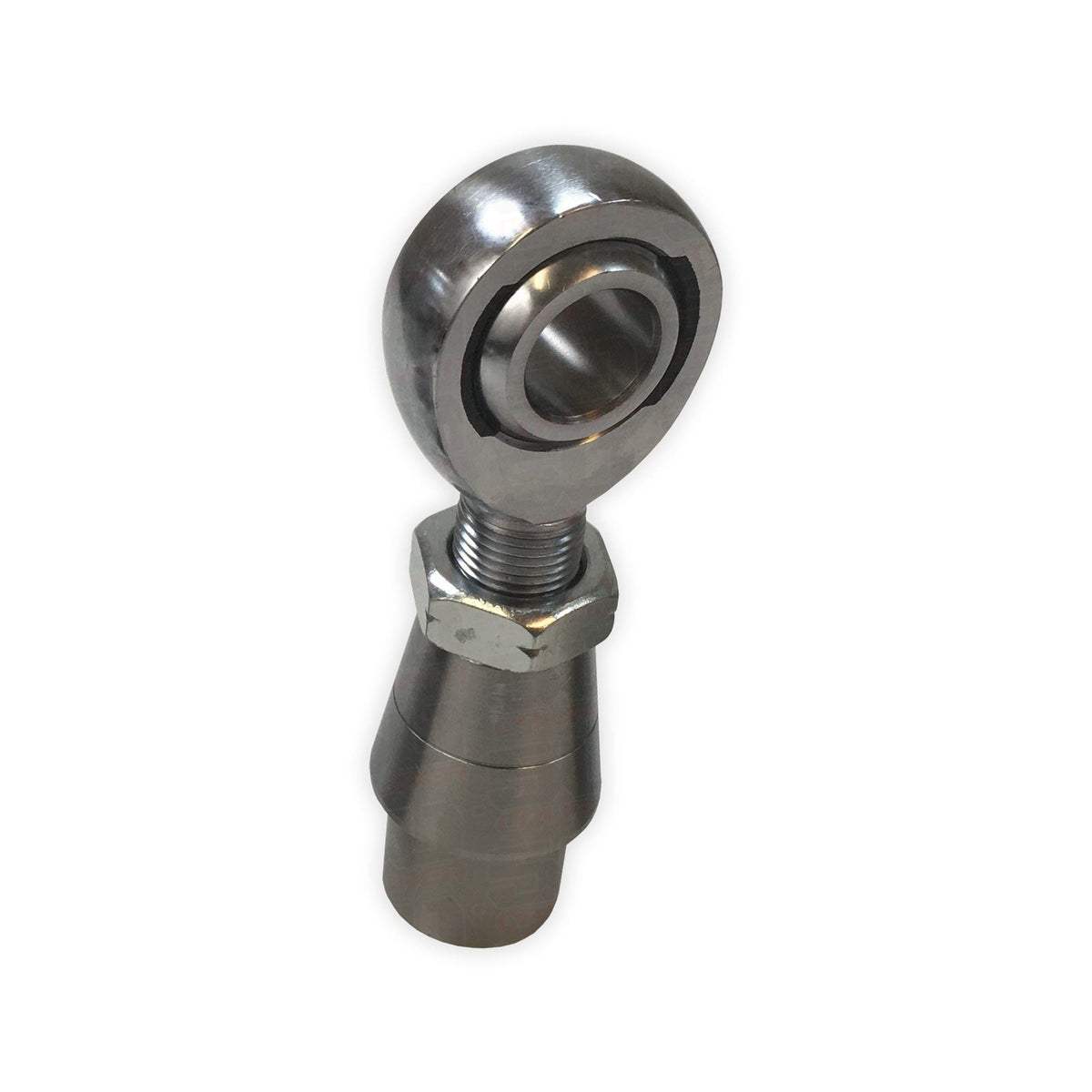

50 Caliber Racing Single Joint Rod End Kit - 3/4-16 Chromoly Heim Joint with Bung for 1.75" OD Tubing

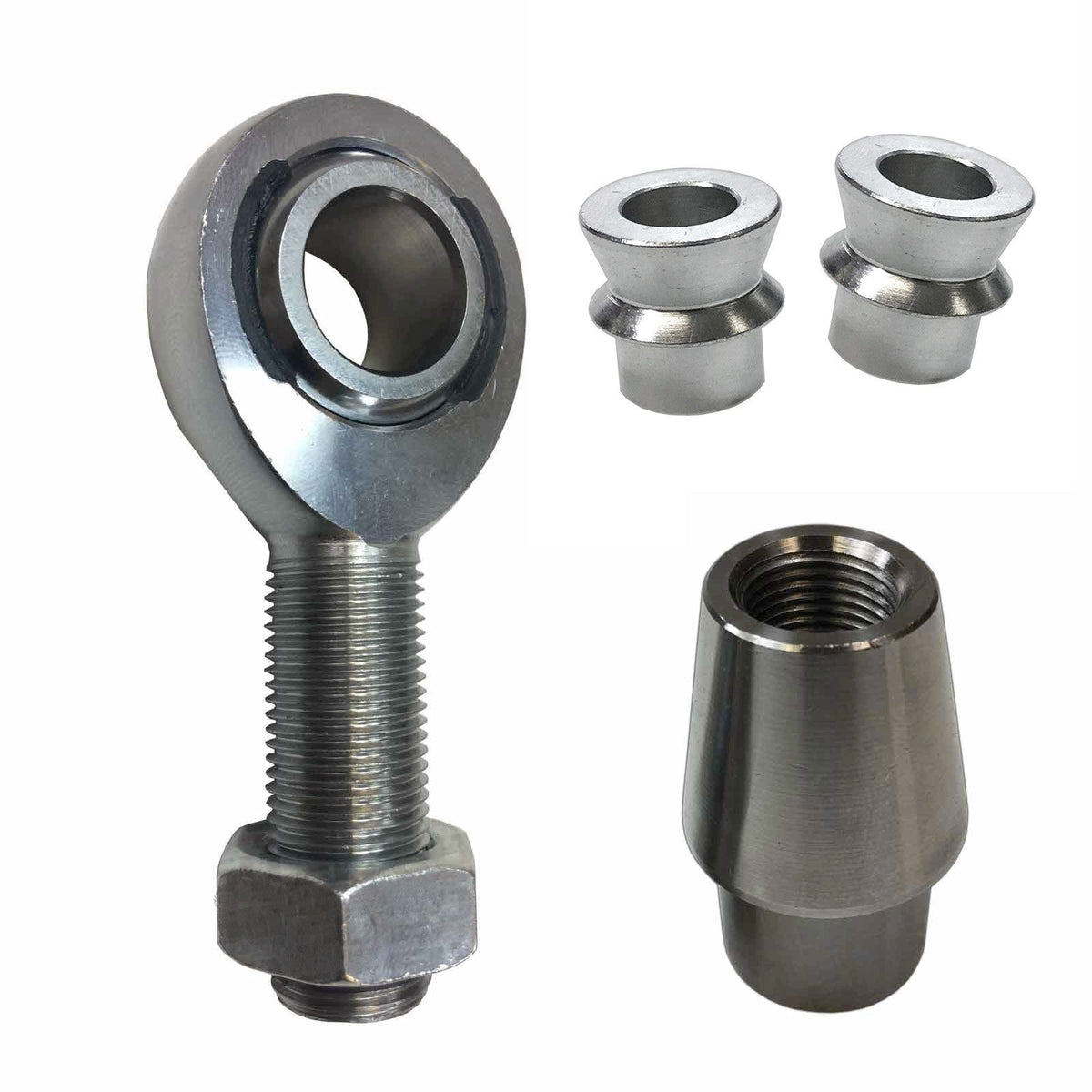

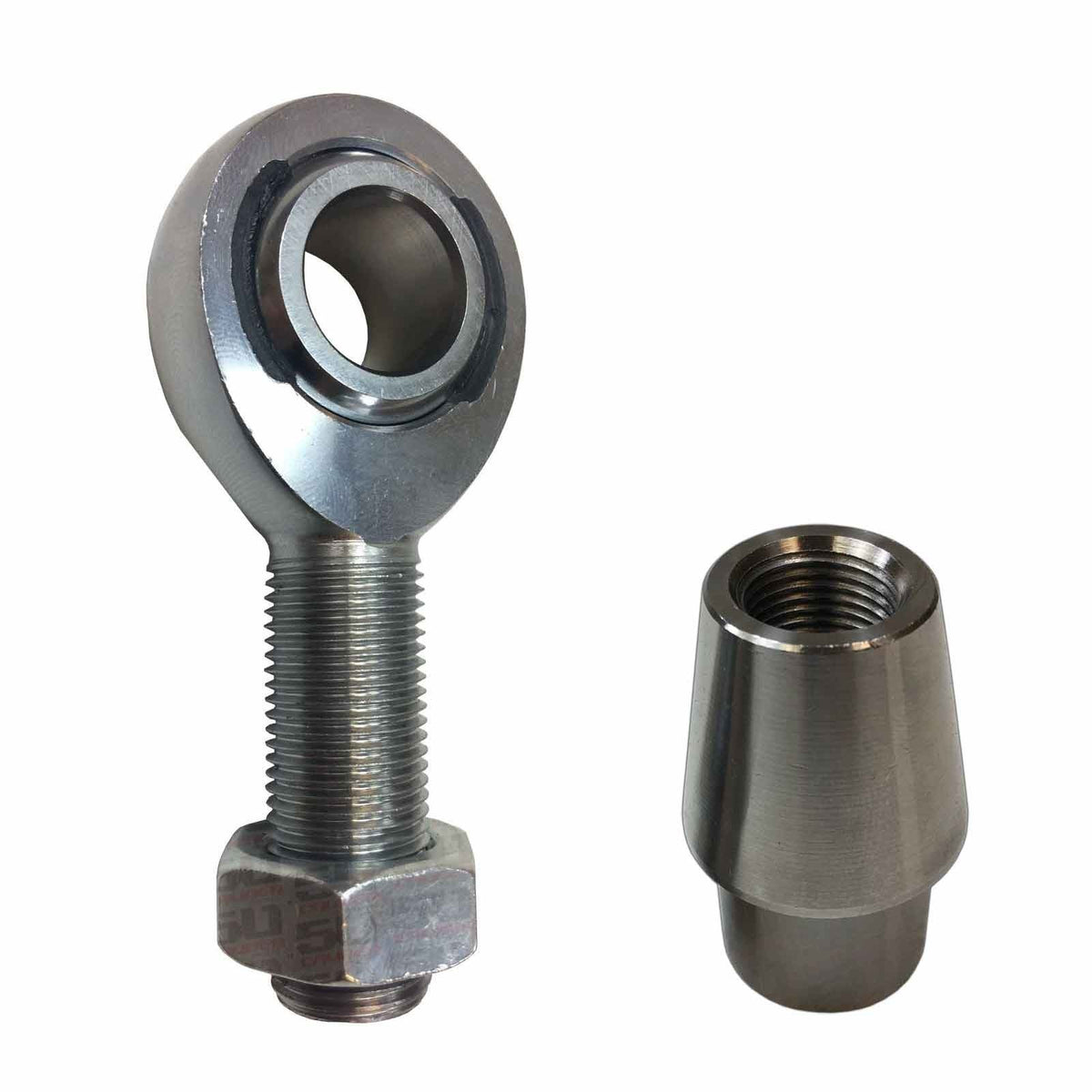

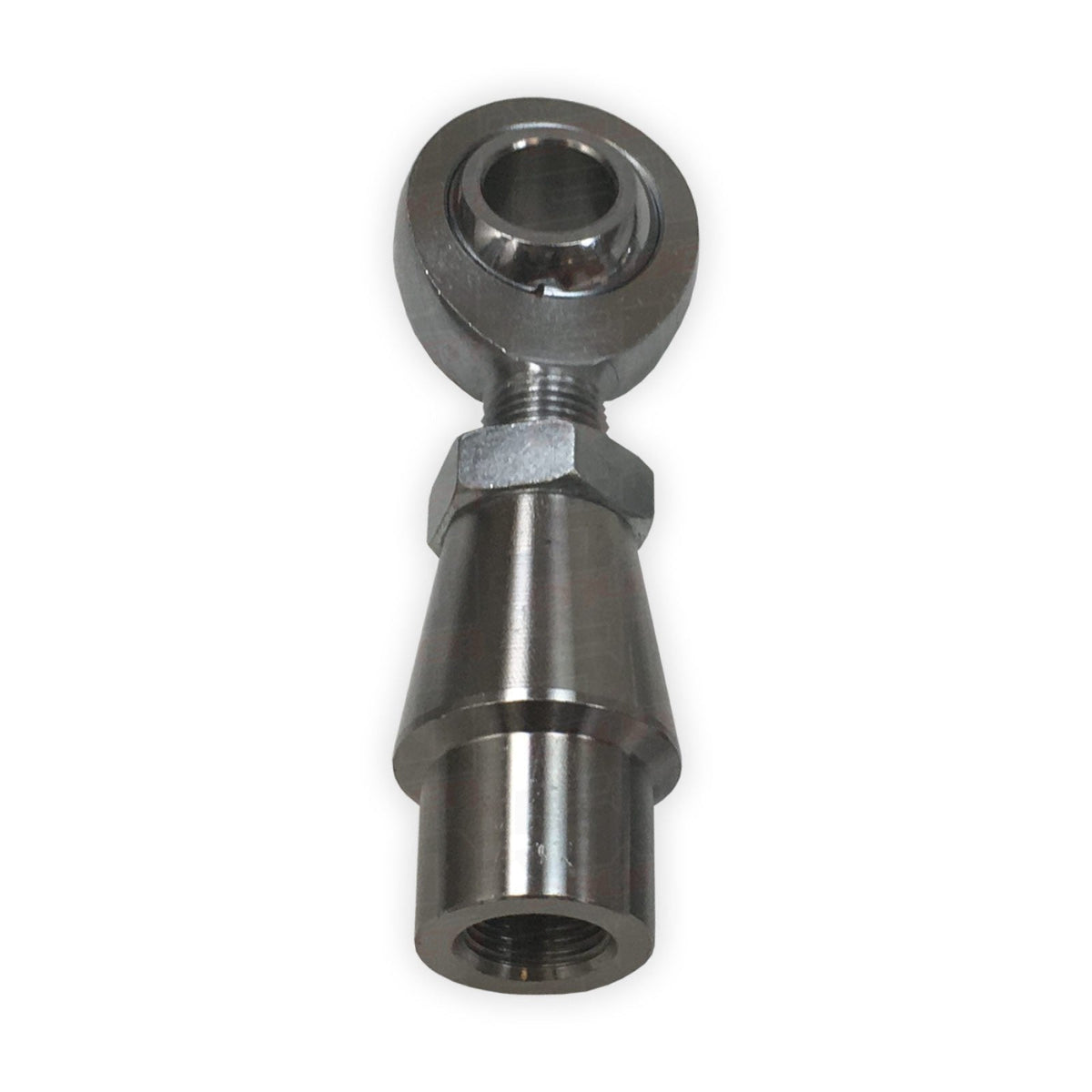

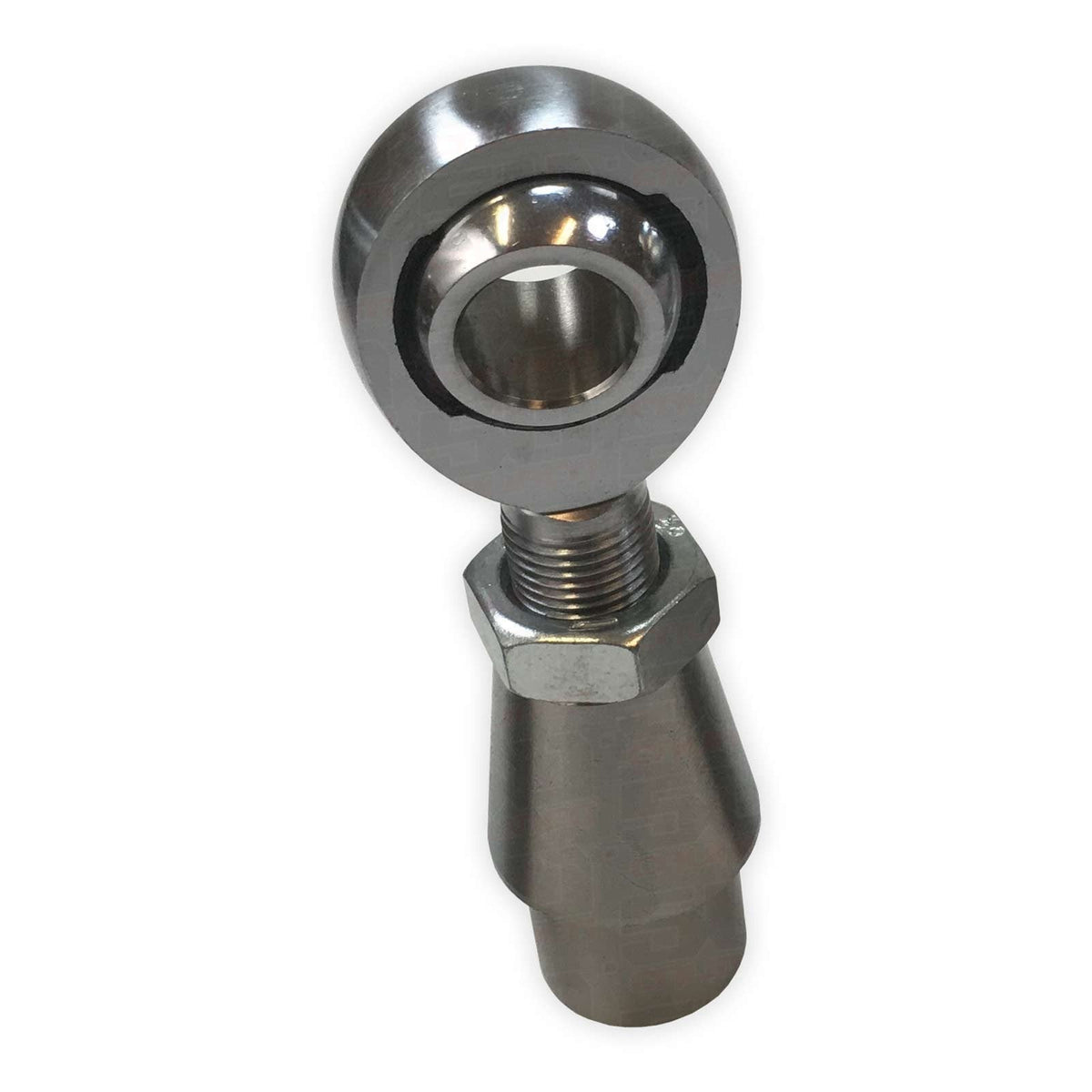

Single rod end kit including a 3/4 x 3/4 heat treated heim joint, jam nut, and a steel weld in bung tube adapter. Designed specifically for 1.75" OD tubing with with wall thicknesses of .095 or .120. Our heim joints are made from 4130 Chromoly steel, with a nylon/teflon (PTFE) liner. The extreme load rating and size make these excellent for building custom steering and suspension links for trucks, 4x4s, rock crawlers, J**ps, sand rails and more. Available with or without high misalignment spacers.
Specifications:
Heim Joints:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- 52100 hardened bearing steel ball
- Static radial load rating: 28,081 lb
- Thread pitch: 3/4"-16
- Bore: 3/4"
- Socket end diameter: 1.750"
- Socket width: .687"
- Ball width: .875"
- Center line length: 2.875"
Bung:
- Thread: Female 3/4"-16
- Material: Chromoly Steel
- Thread Length: Full length
- Choose from 2 different tube sizes:

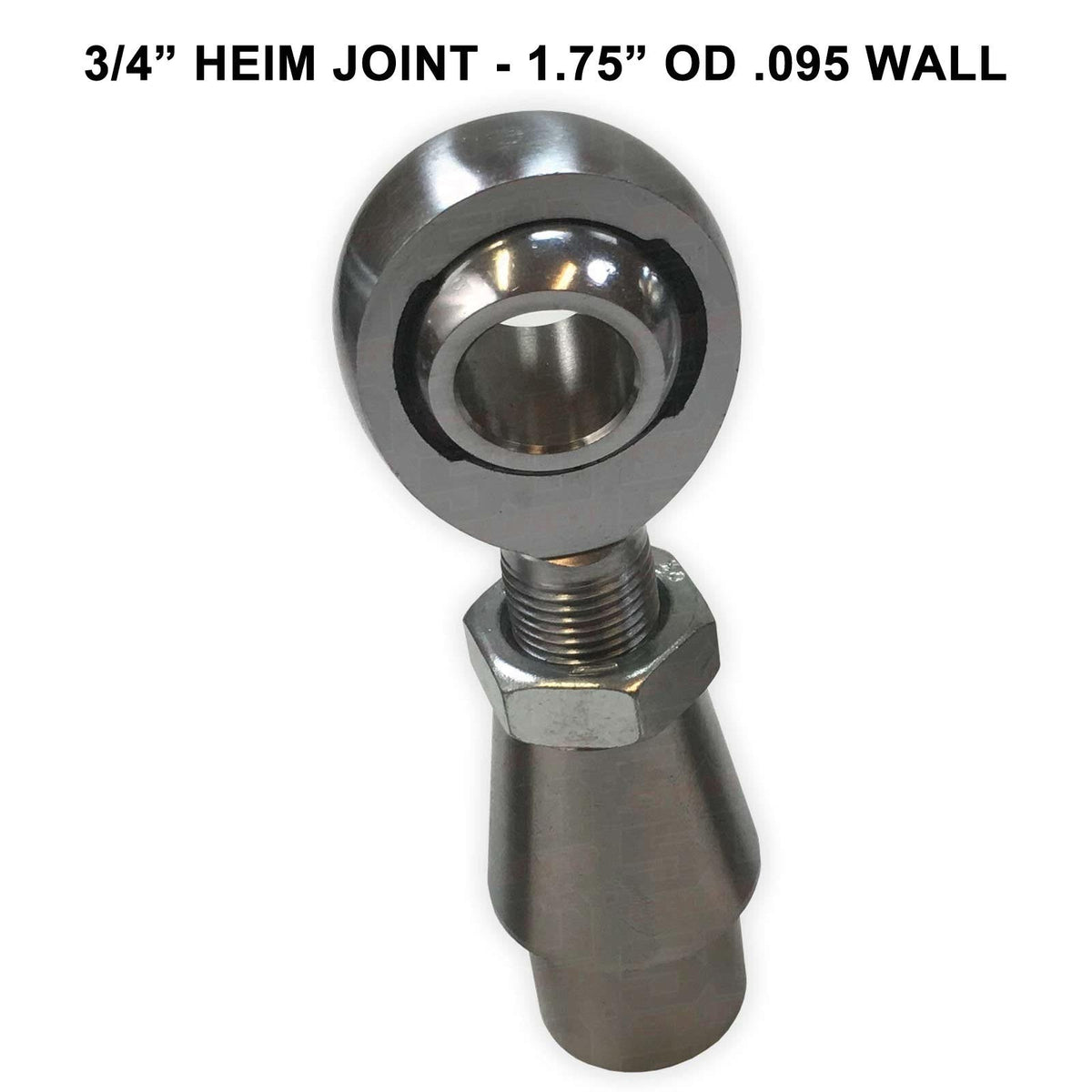

1.75" OD. x .095 Wall x 1.56" ID

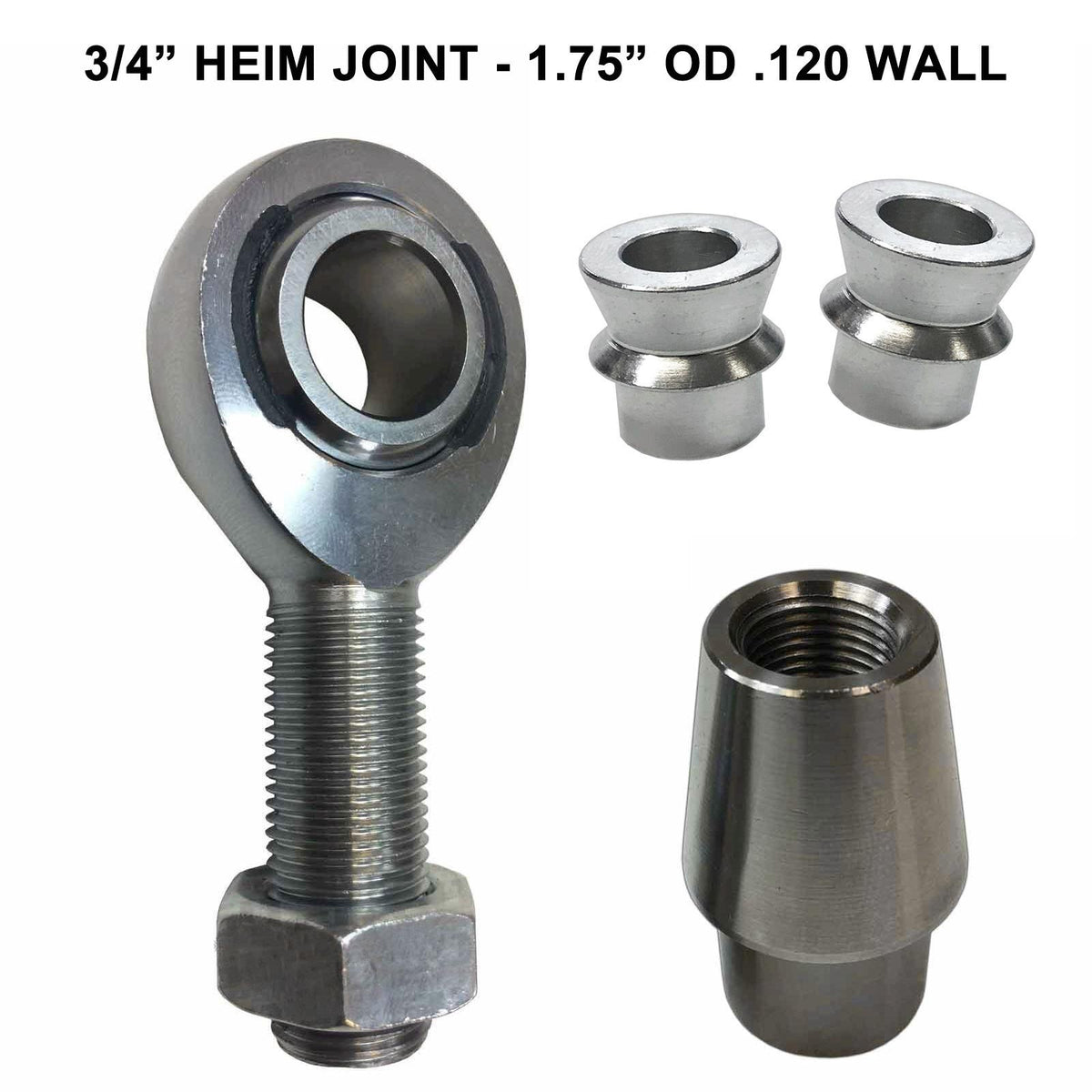

1.75" OD x .120 Wall x 1.51" ID

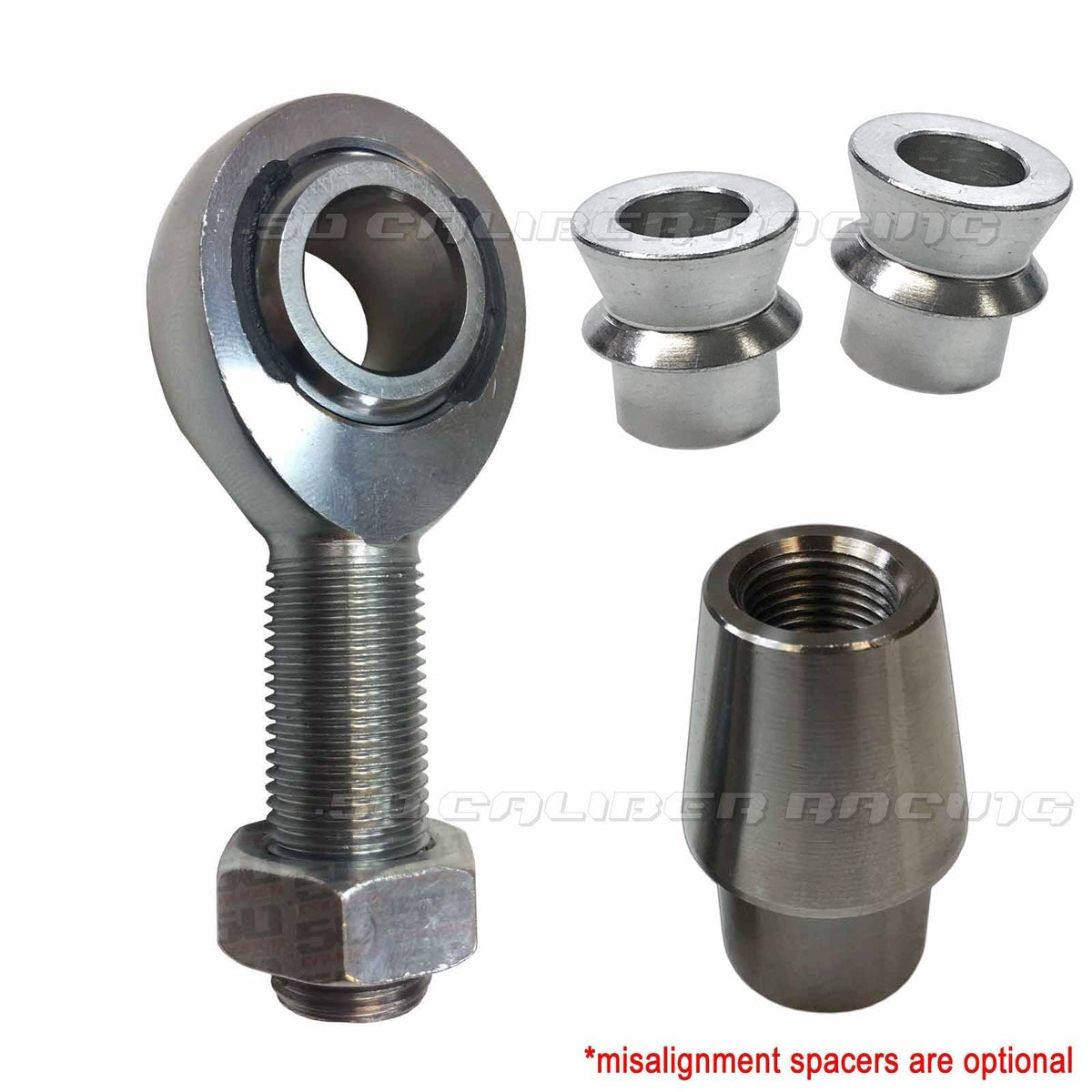

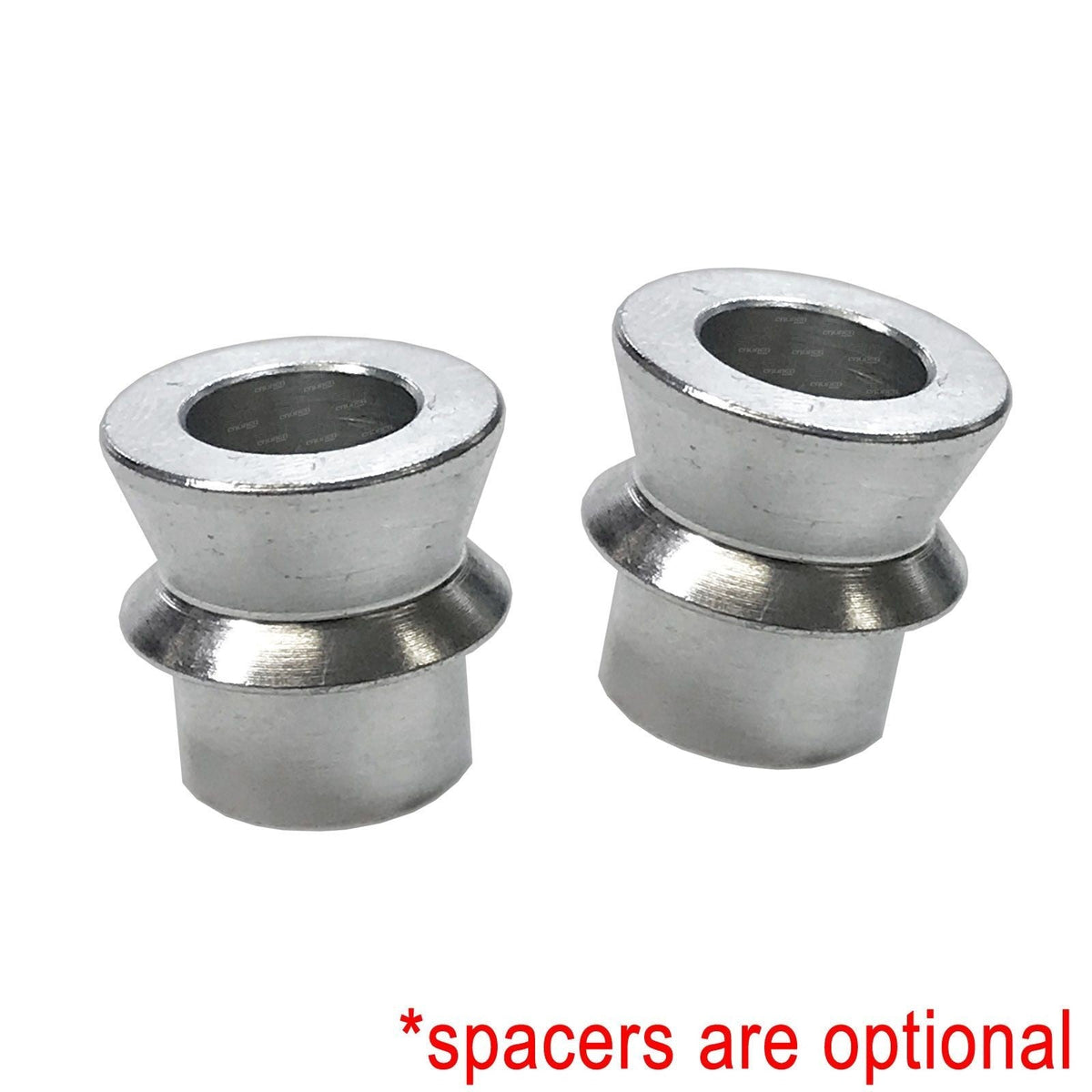

High Misalignment Spacers (optional)
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .625" ID x .743" OD x .922" W
- Compatible with 5/8" bolt size
Perfect for fabricating custom suspension and steering links on your 4x4, rock crawler, sand rail, hot rod, Jeep and more!
- Panhard bar / Trackbar
- Drag link
- Hi steer components
- Radius rods
- Sway bar links
- Tie rods
- Control arms
- 3 Link / 4 Link
- Custom Mounts
