KC FLEX ERA® 50" LED Light Bar Master Kit | The Ultimate High-Performance Modular Off-Road Light Bar
Push your limits and light every inch of the trail with the KC FLEX ERA® 50" LED Light Bar Master Kit—the most powerful and customizable lighting solution in the FLEX ERA® lineup. Designed for maximum performance, modular flexibility, and a bold aesthetic, this light bar delivers a staggering 39,560 lumens of trail-dominating illumination.
With five 10" linkable segments, this bar is engineered for versatility—allowing you to configure it in a straight or curved radius to match your vehicle’s profile. Equipped with Combo Beam lenses (pre-installed) and Spot Beam lenses included, the FLEX ERA® 50" Light Bar ensures you're ready for any terrain, from wide field-of-view to long-range visibility.
Paired with KC’s legendary build quality, IP68 waterproof rating, customizable bezels, and amber LED backlight, this master kit redefines what’s possible in off-road lighting.
✅ Key Features & Benefits:
- ✔ Massive 39,560 Lumens of Lighting Power
- ✔ Linkable & Curvable Modular Design – Build the Bar to Your Needs
- ✔ Master Kit Includes Both Combo & Spot Beam Lenses
- ✔ Amber LED Backlight – Stylish Signature Look for Day or Night
- ✔ Customizable Aesthetic Bezels – Standard Gold (Black, Red, Blue Optional)
- ✔ Race-Proven IP68 Waterproof/Dustproof Construction
- ✔ Complete Plug-N-Play Wiring Kit with Dual-Throw LED Switch
✅ Lighting Performance (50” Light Bar):
-
Lumens: 39,560 lm @ 5000K
-
LUX @ 10m: 8,050 lx (Combo) / 9,000 lx (Spot)
-
Candela: 805,000 cd (Combo) / 900,000 cd (Spot)
-
Beam Distance: 1,620 m (Combo) / 2,955 m (Spot)
-
Beam Pattern Options: Combo Beam (Pre-installed), Spot Beam (Included)
✅ Technical Specifications:
-
Wattage: 60W (Amber Backlight) / 540W (High-Power)
-
Amp Draw @ 12V: 5.0A (Backlight) / 45.0A (Main Beam)
-
Voltage Range: 9V–36V
-
IP Rating: IP68 Waterproof/Dustproof
-
Dimensions (Straight): W 51.36" x H 2.66" x D 3.85"
-
Dimensions (Curved): W 50.89" x H 2.66" x D 3.85"

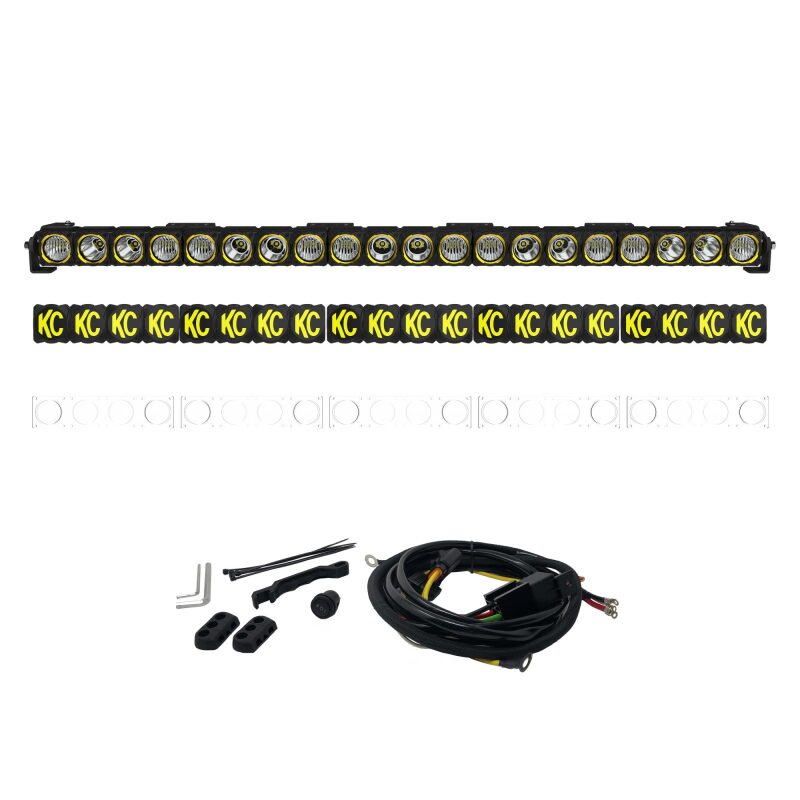

✅ What’s in the Box:

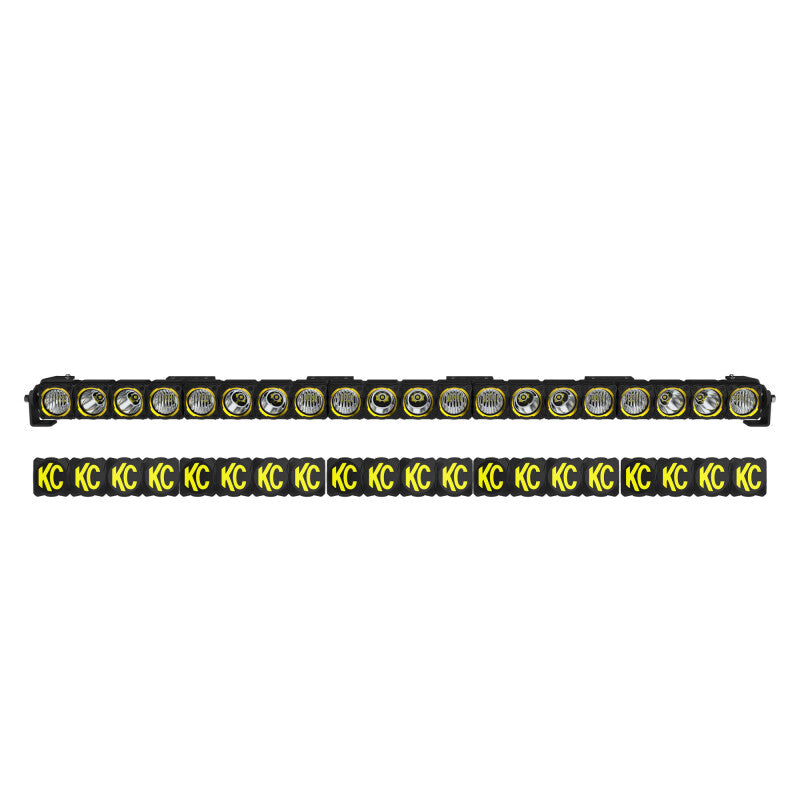

- (5) 10" KC FLEX ERA® LED Light Bars
- (4) Linker & End Mount Assembly Kits
- (5) Combo Beam Lenses (Pre-installed)
- (5) Spot Beam Lenses

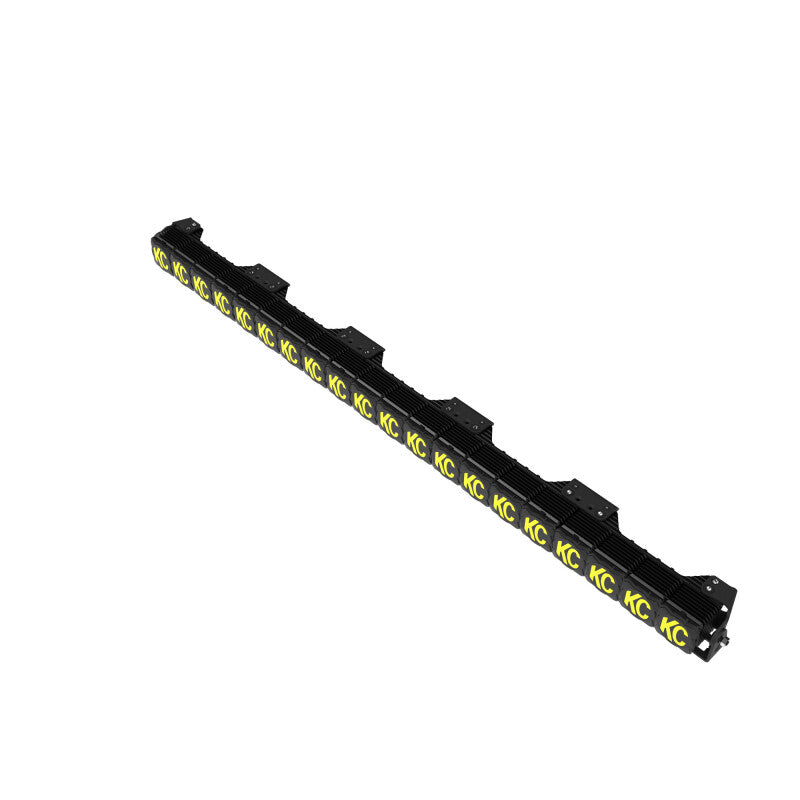

- (5) KC Light Covers – Black with Yellow KC Logo
- (1) Complete Plug-N-Play Wiring Harness with Dual-Throw LED Switch
✅ Master Kit Advantage:
No more guesswork—get everything in one complete package: beam pattern options, full wiring kit, mounting hardware, and signature covers. Just install and go trailblazing.
✅ Customizable Styling:
Match your rig’s look with interchangeable colored bezels in red, black, blue, or stick with the iconic KC gold. Complete your setup with optional lens shields for even more style and utility.
