KC FLEX ERA® 20" LED Light Bar Master Kit | Customizable, Linkable, High-Performance Off-Road Lighting System
The KC FLEX ERA® 20" LED Light Bar Master Kit sets a new benchmark in beam quality, flexibility, and rugged performance for off-road enthusiasts. Designed with modular adaptability, interchangeable beam optics, and customizable styling options, this bar delivers everything you need to light up the trail—your way.
Pre-assembled in Combo Beam for the best all-around performance and packaged with Spot Beam lenses, the FLEX ERA 20" Light Bar allows you to fine-tune output and beam spread based on your driving needs. Featuring linkable 10" segments, the bar can be configured as straight or curved, making it one of the most flexible lighting systems on the market.
Delivering a massive 15,824 lumens, this trail-dominating light bar features an Amber LED backlight, IP68 waterproof durability, and KC’s legendary build quality—engineered to conquer the most extreme off-road conditions.
✅ Key Features & Benefits:
- ✔ Massive 15,824 Lumens for Maximum Visibility
- ✔ Modular Linkable Design – Straight or Curved Configuration
- ✔ Master Kit Includes Combo & Spot Beam Lenses

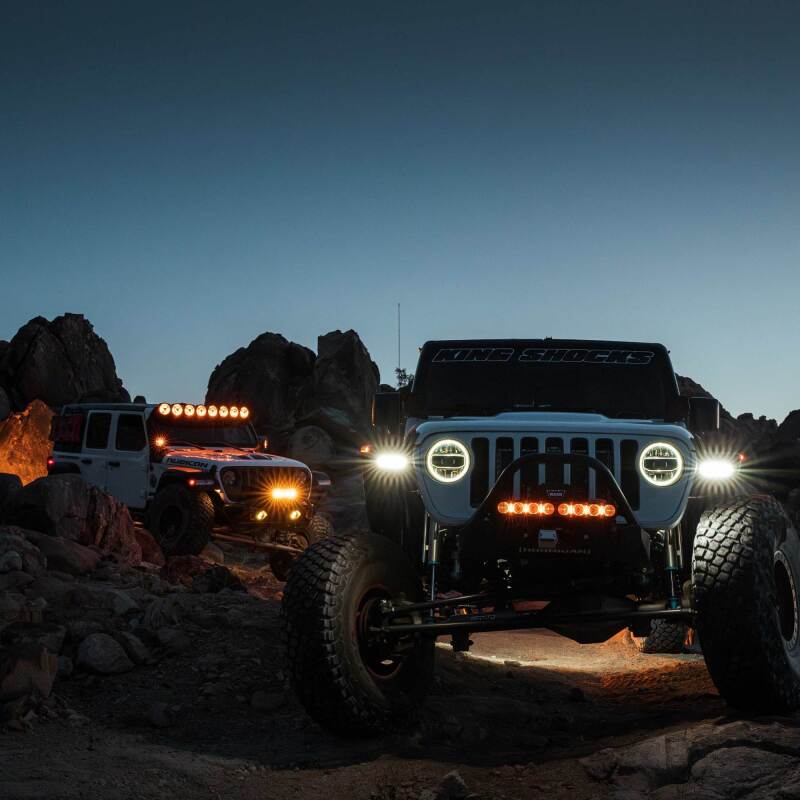

- ✔ Amber LED Backlight – Day/Night Style & Function
- ✔ Customizable Aesthetic Bezels – Gold Standard (Optional: Black, Blue, Red)
- ✔ IP68 Waterproof & Dustproof – Built for Rugged Off-Road Use
- ✔ KC Adventure Further™ Guarantee – Trusted Durability
✅ Light Performance (20"):
-
Lumens: 15,824 lm (5000K)
-
LUX @ 10 Meters: 3,220 lx (Combo) / 3,600 lx (Spot)
-
Candela: 322,000 cd (Combo) / 360,000 cd (Spot)
-
Beam Distance: 648m (Combo) / 1,182m (Spot)
-
Beam Pattern Options: Combo (Pre-installed) / Spot (Included)
✅ Technical Specifications:
-
Wattage: 24W (Amber Backlight) / 216W (Main Beam)
-
Amp Draw @ 12V: 2.0A (Backlight) / 18.0A (Main Beam)
-
Voltage Range: 9V–36V
-
IP Rating: IP68
-
Dimensions (Straight): W: 21.36" x H: 2.66" x D: 3.85"
-
Dimensions (Curved): W: 21.35" x H: 2.66" x D: 3.85"

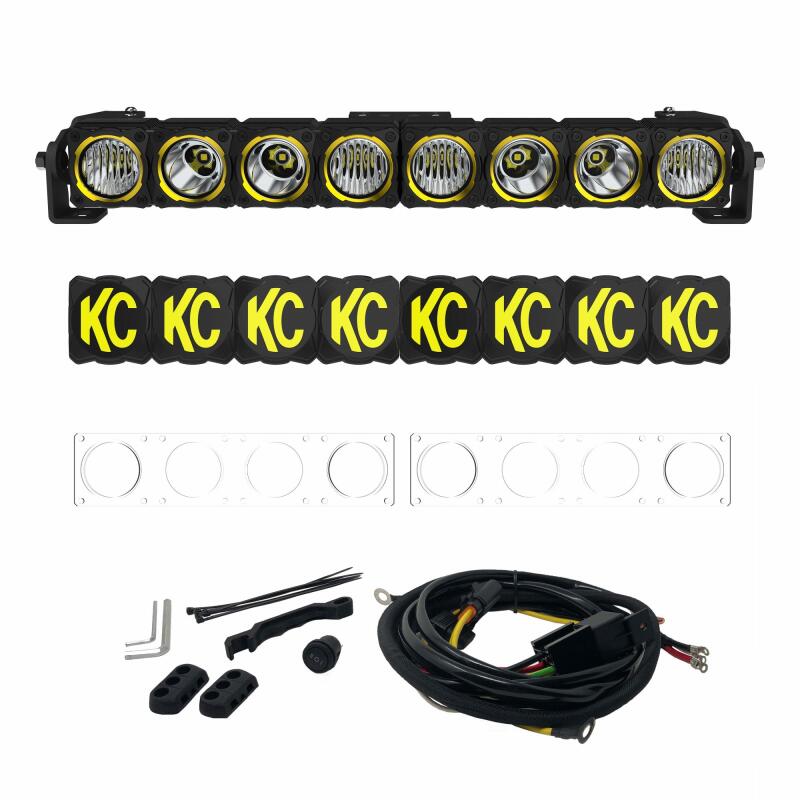

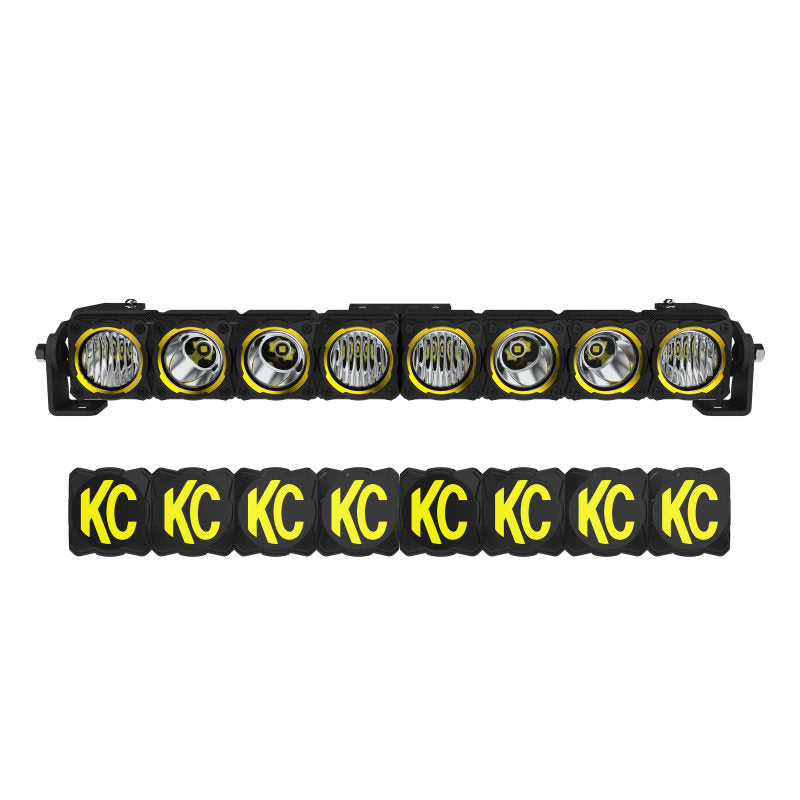

✅ What’s in the Box:
- (2) 10" KC FLEX ERA® LED Light Bar Segments
- (1) Linker & End Mount Assembly Kit
- (2) Combo Beam Lenses (Pre-installed)
- (2) Spot Beam Lenses

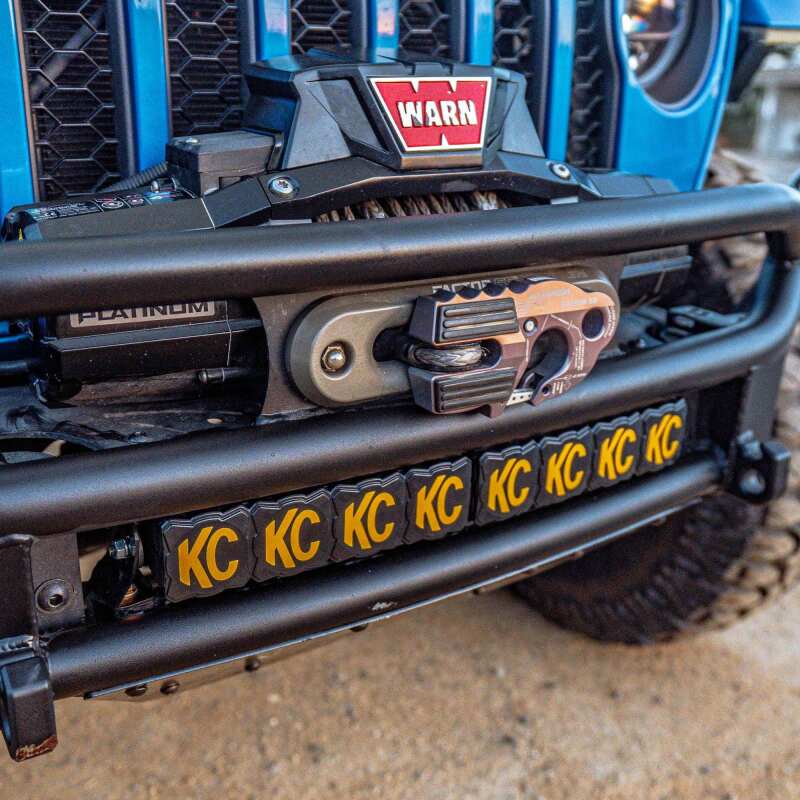

- (2) KC Black Light Covers with Yellow KC Logo
- (1) Complete Plug-N-Play Wiring Harness with Dual-Throw LED Switch
✅ Master Kit Advantage:
Say goodbye to choosing between beam patterns or incomplete setups. The KC FLEX ERA® Master Kit comes with both Combo and Spot lenses, full wiring, o-rings, mounting hardware, and more—making it the ultimate out-of-the-box lighting solution for off-roaders.
✅ Custom Aesthetic Options:
Personalize your FLEX ERA Bar with interchangeable colored accent bezels. Standard gold bezels are included, with optional red, blue, or gloss black sold separately for the perfect match to your build.
